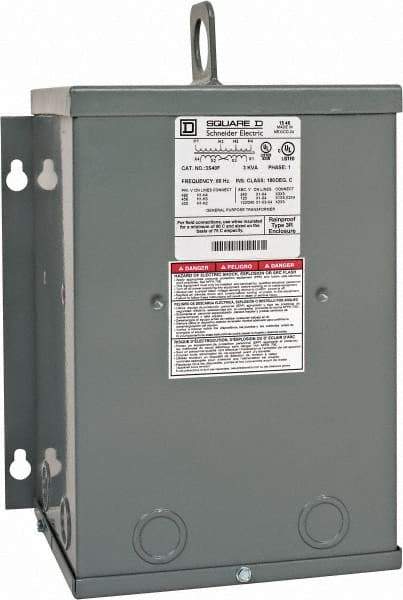

Square D - General Purpose Transformers Power Rating (kVA): 3.0000 Input Voltage: 480
Item #: 69661221
Brand: Square D
Model #: 3S40F
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
Product Specifications
General Purpose Transformers; Power Rating (kVA): 3.0000 ; Input Voltage: 480 ; Output Voltage: 120/240 VAC ; Number of Phases: 1 ; NEMA Enclosure Rating: 3R ; Frequency Rating (Hz): 60
| Power Rating (kVA) | 3.0000 |
| Input Voltage | 480 |
| Output Voltage | 120/240 VAC |
| Number of Phases | 1 |
| NEMA Enclosure Rating | 3R |
| Frequency Rating (Hz) | 60 |
| Mounting Type | Wall Mount |
| Overall Width (mm) | 218.95 |
| Overall Width (Decimal Inch) | 8.6200 |
| Overall Height (mm) | 266.70 |
| Overall Height (Decimal Inch) | 10-1/2 |
| Overall Depth (Decimal Inch) | 6-1/2 |
| Overall Depth (mm) | 165 |
| Standards Met | cULus; UL |
