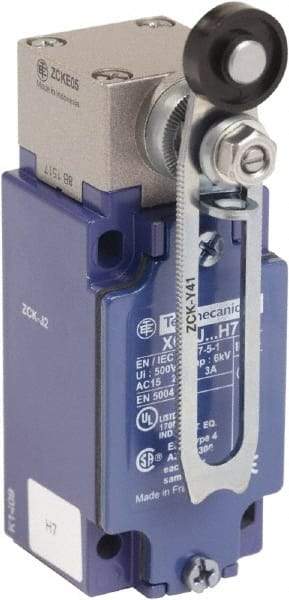

Telemecanique Sensors - SPDT, 2NC/2NO, 240 VAC, Screw Terminal, Roller Lever Actuator, General Purpose Limit Switch - 1, 2, 3, 4, 12 NEMA Rating, IP66 IPR Rating
Item #: 69657666
Brand: Telemecanique Sensors
Model #: XCKJ20541H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Roller Lever |
| Voltage | 240 VAC |
| Contact Form | SPDT |
| Contact Configuration | 2NC/2NO |
| Terminal Type | Screw Terminal |
| Connection Type | 1/2 NPT |
| Actuator Location | Top |
| Material | Metal |
| Amperage | 10 |
| NEMA Rating | 1; 2; 3; 4; 12 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Force (oz-in) | 33.30 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CSA C22.2 No. 14; IEC 337-1; IEC 68-2-6; NFC 63-140; UL 508; VDE 0660-200 |
