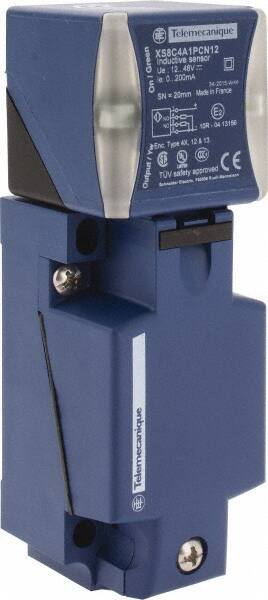

Telemecanique Sensors - PNP, NO/NC, 20mm Detection, Rectangular, Inductive Proximity Sensor - 4 Wires, IP65, IP67, IP69, 12 to 48 VDC, 40mm Long x 117mm Wide
Item #: 69656957
Brand: Telemecanique Sensors
Model #: XS8C4A1PCN12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Rectangular |
| Sensor Operation Output Mode | NO/NC |
| Output Type | PNP |
| Connector Type | Screw Clamp |
| Number of Wires | 4 |
| Detection Distance (mm) | 20.00 |
| Maximum Voltage | 12-48 VDC |
| Overall Width/Diameter (mm) | 117 |
| Ingress Protection Rating | IP65; IP67; IP69 |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 300 |
| Housing Material | PBT |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 40 |
| Standards Met | CCC; CSA; DIN 40050; EN 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; TUV; UL |
