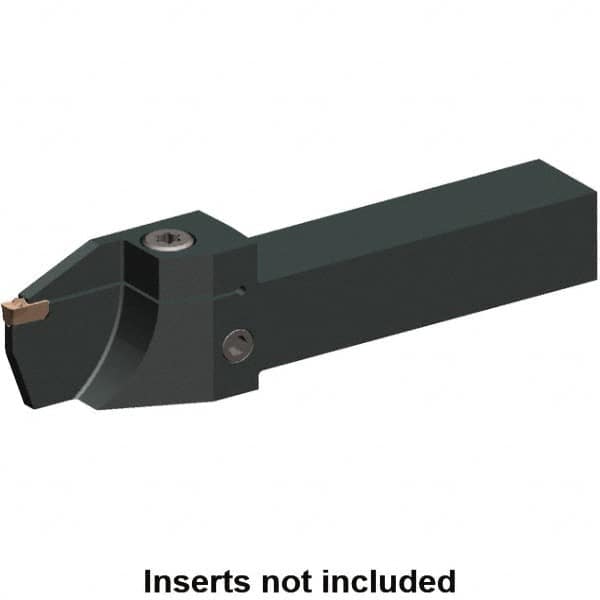

26mm Max Depth, 5mm to 5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1″ x 1″ Shank, Uses EG0500M05P04 Inserts, EVSC-T Toolholder, Through Coolant, Series Beyond Evolution
Item #: 69577260
Brand: Kennametal
Model #: 5980919
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Depth of Cut (mm) | 26.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Maximum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | EVSC-T |
| Insert Holding Method | Clamp |
| Insert Compatibility | EG0500M05P04 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 105.40 |
| Shank Length (Decimal Inch) | 4.1500 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.3540 |
| Head Height (mm) | 34.40 |
| Head Length (Decimal Inch) | 1.8500 |
| Head Length (mm) | 47.00 |
| Mount Size | 1616 |
| Complete Insert Compatibility | EG0500M05P04 |
| Insert Seat Size | 5.0 |
| Coolant Through | Yes |
