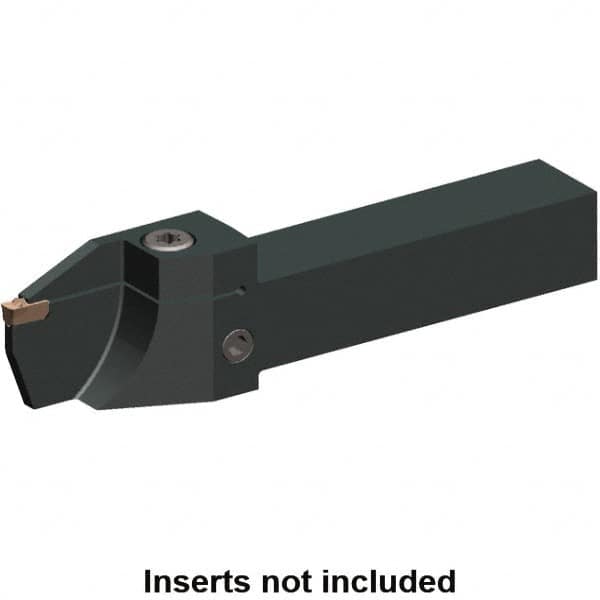

32mm Max Depth, 4mm to 4mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1-1/4″ x 1-1/4″ Shank, Uses EG0400M04P04 Inserts, EVSC-T Toolholder, Through Coolant, Series Beyond Evolution

32mm Max Depth, 4mm to 4mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1-1/4″ x 1-1/4″ Shank, Uses EG0400M04P04 Inserts, EVSC-T Toolholder, Through Coolant, Series Beyond Evolution


Item #: 69577245
Brand: Kennametal
Model #: 5980932

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 1.2600
Maximum Depth of Cut (mm) 32.00
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.1580
Maximum Groove Width (mm) 4.00
Minimum Groove Width (Decimal Inch) 0.1580
Minimum Groove Width (mm) 4.00
Toolholder Style EVSC-T
Insert Holding Method Clamp
Insert Compatibility EG0400M04P04
Shank Height (mm) 31.75
Shank Height (Inch) 1-1/4
Shank Height (Decimal Inch) 1.2500
Shank Length (mm) 99.40
Shank Length (Decimal Inch) 3.9130
Shank Width/Diameter (Decimal Inch) 1.2500
Shank Width/Diameter (mm) 31.75
Shank Width/Diameter (Inch) 1-1/4
Series Beyond Evolution
Overall Length (mm) 152.40
Back of Bar to Cutting Edge (Decimal Inch) 6.0000
Head Height (Decimal Inch) 1.6240
Head Height (mm) 41.25
Head Length (Decimal Inch) 2.0870
Head Length (mm) 53.00
Mount Size 2020
Complete Insert Compatibility EG0400M04P04
Insert Seat Size 4.0
Coolant Through Yes
$227.78
