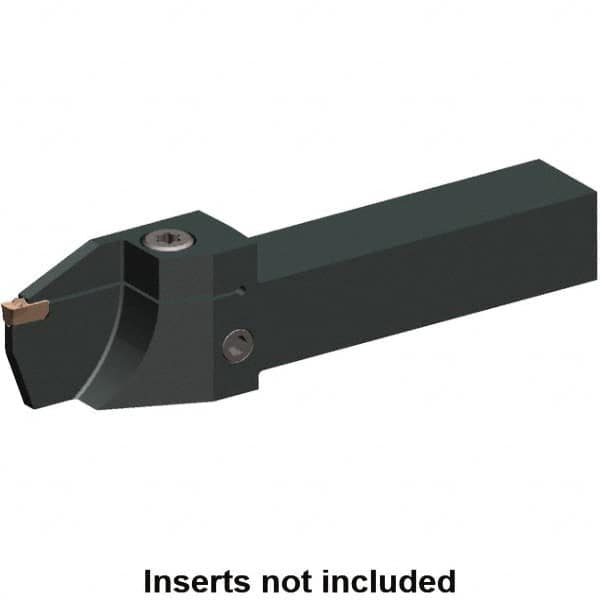

32mm Max Depth, 4mm to 4mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1-1/4″ x 1-1/4″ Shank, Uses EG0400M04P04 Inserts, EVSC-T Toolholder, Through Coolant, Series Beyond Evolution
Item #: 69577054
Brand: Kennametal
Model #: 5981024
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.1580 |
| Maximum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1580 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | EVSC-T |
| Insert Holding Method | Clamp |
| Insert Compatibility | EG0400M04P04 |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 99.40 |
| Shank Length (Decimal Inch) | 3.9130 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.6240 |
| Head Height (mm) | 41.25 |
| Head Length (Decimal Inch) | 2.0870 |
| Head Length (mm) | 53.00 |
| Mount Size | 2020 |
| Complete Insert Compatibility | EG0400M04P04 |
| Insert Seat Size | 4.0 |
| Coolant Through | Yes |
