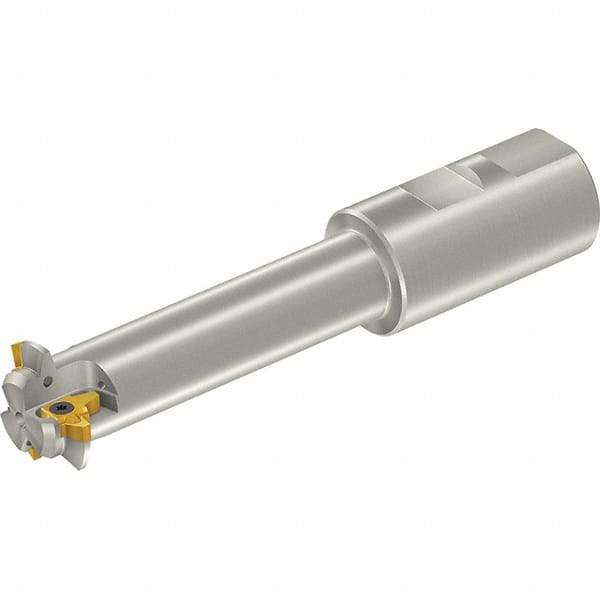

Vargus - 1.12" Cut Diam, 2-3/4" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 3LI, 3/8" Insert Size, 2 Inserts, Toolholder Style TM SC W, 5.315" OAL
Item #: 69385185
Brand: Vargus
Model #: 67136
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.12 |
| Maximum Hole Depth (Decimal Inch) | 2.7500 |
| Insert Style | 3LI |
| Insert Size (Decimal Inch) | 0.3750 |
| Toolholder Style | TM SC W |
| Shank Diameter (Decimal Inch) | 1 |
| Overall Length (Decimal Inch) | 5.3150 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.71 |
