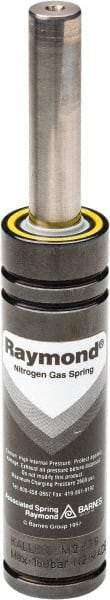

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 12mm Rod Diam, 24.9mm Diam, 10mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 52mm Body Length, 62mm OAL, 360 psi Initial Charge
Item #: 69147627
Brand: Associated Spring Raymond
Model #: M2-010-BK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 24.90 |
| Body Length (mm) | 52 |
| Body Length (Decimal Inch) | 2.0472 |
| Diameter (Decimal Inch) | 0.9803 |
| Spring Force Initial (N) | 489 |
| Spring Force Initial (lbf) | 110 |
| Rod Diameter (mm) | 12 |
| Rod Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 62 |
| Overall Length (Decimal Inch) | 2.4409 |
| Maximum Stroke (mm) | 10 |
| Maximum Stroke (Decimal Inch) | 0.3937 |
