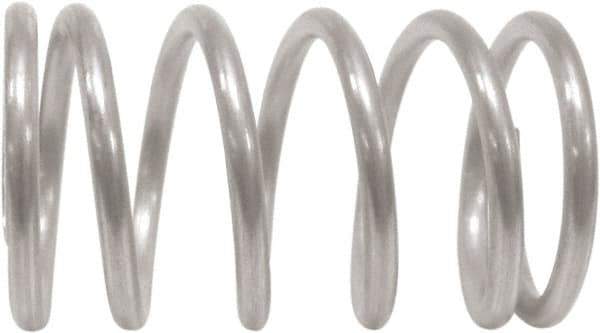

Associated Spring Raymond - 28.2mm OD, 3.2mm Wire, 7-7/8" Free Length, Compression Spring - 17.5 Lb Spring Rating, 384.35 N Max Work Load, Stainless Steel
Item #: 69085421
Brand: Associated Spring Raymond
Model #: D23420
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 28.19 |
| Outside Diameter (Decimal Inch) | 1.1100 |
| Free Length (mm) | 200 |
| Free Length (Decimal Inch) | 7.8740 |
| Spring Rate Pounds per Inch (Pounds) | 17.5000 |
| Maximum Work Load (N) | 384.35000610 |
| Solid Height (mm) | 65.61 |
| Solid Height (Decimal Inch) | 2.5830 |
| Material | Stainless Steel |
| Wire Size (mm) | 3.20 |
| Wire Size (Decimal Inch) | 0.1260 |
