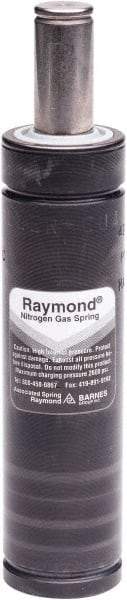

Associated Spring Raymond - G1/8 Fill Port, M8 Mt Hole, 8mm Rod Diam, 95.2mm Diam, 50mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 205mm Body Length, 255mm OAL, 23,800 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69082709
Brand: Associated Spring Raymond
Model #: CU 7500-050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 95.20 |
| Body Length (mm) | 205 |
| Body Length (Decimal Inch) | 8.0709 |
| Diameter (Decimal Inch) | 3.7480 |
| Spring Force Initial (N) | 74997 |
| Spring Force Initial (lbf) | 16860 |
| Spring Force Full Stroke (N) | 105868 |
| Spring Force Full Stroke (lbf) | 23800 |
| Rod Diameter (mm) | 8 |
| Rod Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 255 |
| Overall Length (Decimal Inch) | 10.0394 |
| Maximum Stroke (mm) | 50 |
| Maximum Stroke (Decimal Inch) | 1.9685 |
