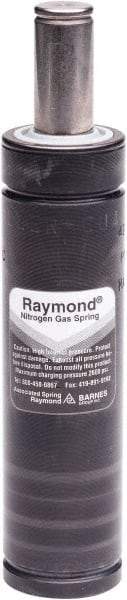

Associated Spring Raymond - G1/8 Fill Port, G1/8 Mt Hole, 30mm Rod Diam, 50.2mm Diam, 50mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 170mm Body Length, 220mm OAL, 6,520 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69082568
Brand: Associated Spring Raymond
Model #: CU 1800-050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | G1/8 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 50.20 |
| Body Length (mm) | 170 |
| Body Length (Decimal Inch) | 6.6929 |
| Diameter (Decimal Inch) | 1.9764 |
| Spring Force Initial (N) | 17993 |
| Spring Force Initial (lbf) | 4045 |
| Spring Force Full Stroke (N) | 29002 |
| Spring Force Full Stroke (lbf) | 6520 |
| Rod Diameter (mm) | 30 |
| Rod Diameter (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 220 |
| Overall Length (Decimal Inch) | 8.6614 |
| Maximum Stroke (mm) | 50 |
| Maximum Stroke (Decimal Inch) | 1.9685 |
