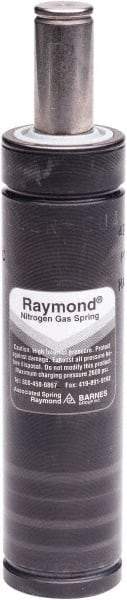

Associated Spring Raymond - G1/8 Fill Port, M10 Mt Hole, 8mm Rod Diam, 120.2mm Diam, 40mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 180mm Body Length, 220mm OAL, 37,100 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69082527
Brand: Associated Spring Raymond
Model #: CU 11800-040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M10 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 120.20 |
| Body Length (mm) | 180 |
| Body Length (Decimal Inch) | 7.0866 |
| Diameter (Decimal Inch) | 4.7323 |
| Spring Force Initial (N) | 118011 |
| Spring Force Initial (lbf) | 26530 |
| Spring Force Full Stroke (N) | 165029 |
| Spring Force Full Stroke (lbf) | 37100 |
| Rod Diameter (mm) | 8 |
| Rod Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 220 |
| Overall Length (Decimal Inch) | 8.6614 |
| Maximum Stroke (mm) | 40 |
| Maximum Stroke (Decimal Inch) | 1.5748 |
