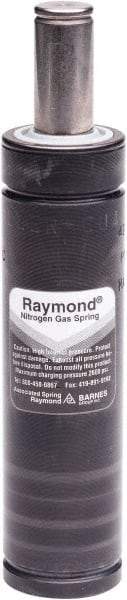

Associated Spring Raymond - M6 Fill Port, M8 Mt Hole, 45mm Rod Diam, 63.2mm Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder - 75mm Body Length, 85mm OAL, 8,655 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69079168
Brand: Associated Spring Raymond
Model #: CU 2900-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Fill Port | M6 |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 63.20 |
| Body Length (mm) | 75 |
| Body Length (Decimal Inch) | 2.9528 |
| Diameter (Decimal Inch) | 2.4882 |
| Spring Force Initial (N) | 29492 |
| Spring Force Initial (lbf) | 6630 |
| Spring Force Full Stroke (N) | 38499 |
| Spring Force Full Stroke (lbf) | 8655 |
| Rod Diameter (mm) | 45 |
| Rod Diameter (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 85 |
| Overall Length (Decimal Inch) | 3.3465 |
| Maximum Stroke (mm) | 10 |
| Maximum Stroke (Decimal Inch) | 0.3937 |
