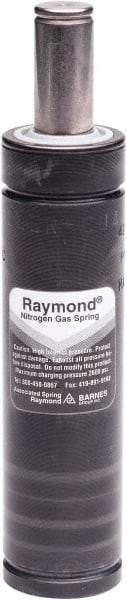

Associated Spring Raymond - M6 Fill Port, M8 Mt Hole, 45mm Rod Diam, 63.2mm Diam, 25mm Max Stroke, Nitrogen Gas Spring Cylinder - 105mm Body Length, 130mm OAL, 9,665 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69079150
Brand: Associated Spring Raymond
Model #: CU 2900-025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Fill Port | M6 |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 63.20 |
| Body Length (mm) | 105 |
| Body Length (Decimal Inch) | 4.1339 |
| Diameter (Decimal Inch) | 2.4882 |
| Spring Force Initial (N) | 29492 |
| Spring Force Initial (lbf) | 6630 |
| Spring Force Full Stroke (N) | 42992 |
| Spring Force Full Stroke (lbf) | 9665 |
| Rod Diameter (mm) | 45 |
| Rod Diameter (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 130 |
| Overall Length (Decimal Inch) | 5.1181 |
| Maximum Stroke (mm) | 25 |
| Maximum Stroke (Decimal Inch) | 0.9843 |
