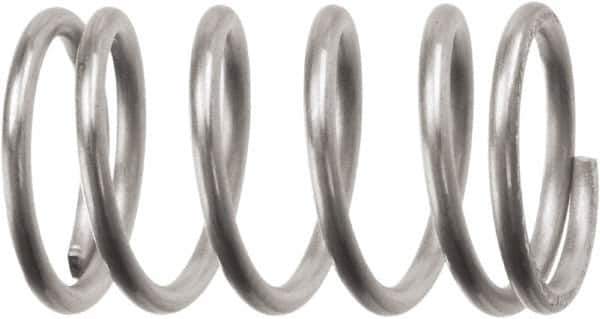

Associated Spring Raymond - 27.94mm OD, 3.18mm Wire, 4-1/2" Free Length, Compression Spring - 23.99 Lb Spring Rating, 190.82 N Max Work Load, Stainless Steel
Item #: 69077618
Brand: Associated Spring Raymond
Model #: C11001254500X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 27.94 |
| Outside Diameter (Decimal Inch) | 1.1000 |
| Free Length (mm) | 114.30 |
| Free Length (Decimal Inch) | 4-1/2 |
| Spring Rate Pounds per Inch (Pounds) | 23.9900 |
| Maximum Work Load (N) | 190.82000732 |
| Solid Height (mm) | 49.68 |
| Solid Height (Decimal Inch) | 1.9560 |
| Material | Stainless Steel |
| Wire Size (mm) | 3.18 |
| Wire Size (Decimal Inch) | 1/8 |
