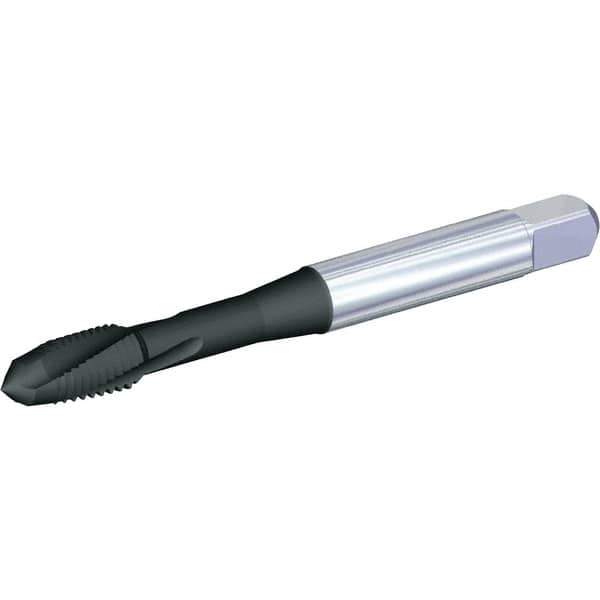

Kennametal - #8-36 UNF 3 Flute 2B/3B Plug Spiral Flute Tap - Powdered Metal, Nitride Finish, 53.8mm OAL, Left Hand Flute, Right Hand Thread, H2, Series T660
Item #: 68485077
Brand: Kennametal
Model #: 5565515
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-36 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.1200 |
| Overall Length (mm) | 53.80 |
| Helix Angle | 15 |
| Thread Standard | UNF |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.3100 |
| Thread Length (mm) | 7.90 |
| Flute Type | Slow Spiral |
| Series/List | T660 |
| Neck Length (Decimal Inch) | 0.4500 |
| Tapping Depth (Decimal Inch) | 0.7600 |
| Tapping Depth (mm) | 19.00 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Shank Diameter (mm) | 4.27 |
| Shank Length (Decimal Inch) | 1.2000 |
| Shank Length (mm) | 30 |
| Square Length (Inch) | 1/4 |
