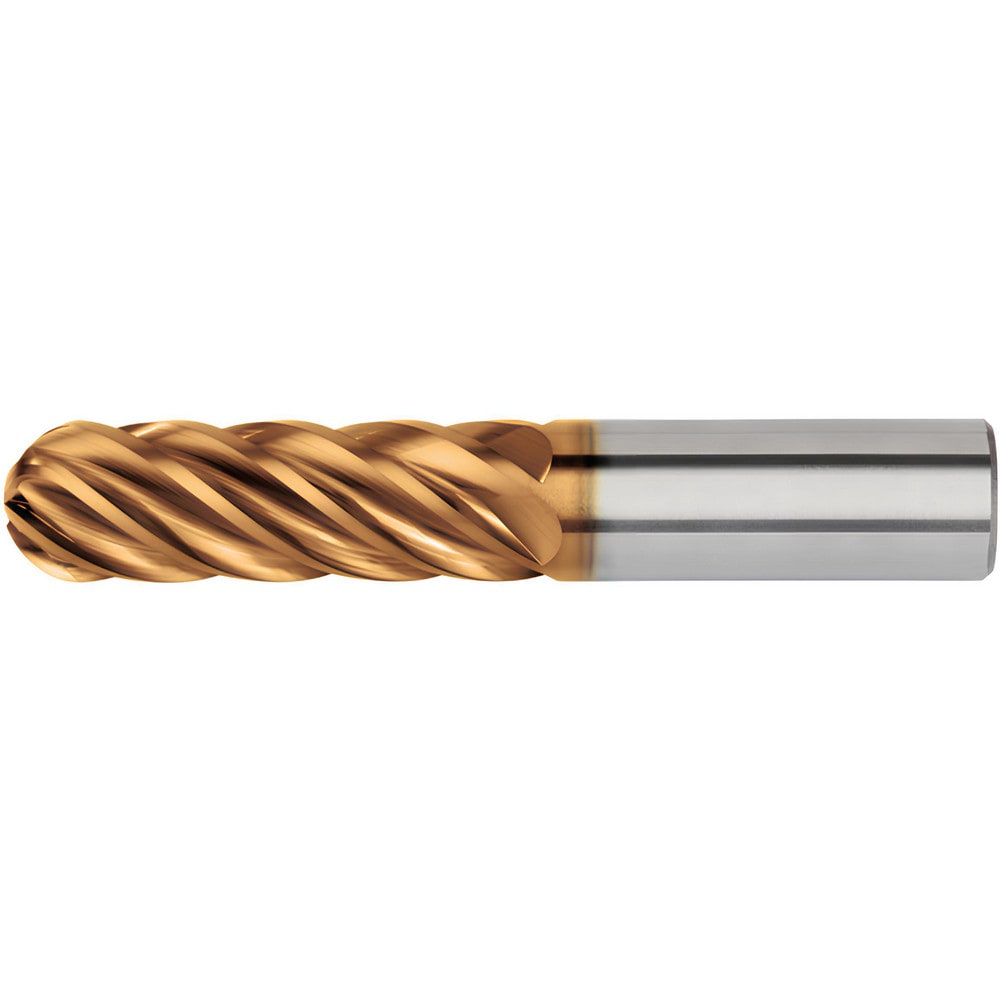

Ball End Mill: 1/2" Dia, 1" LOC, 6 Flute, Solid Carbide
Item #: 67205393
Brand: Kennametal
Model #: 7077137
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 1/2 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.5000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Nose Radius (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 1.0000 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | +0.00000/-0.00043 in |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | HARVI III HA3R |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Additional Information | Versatile Solid Carbide End Mill for Stainless Steel, & High-Temperature Alloys. Harvi™ III Aero Solid Carbide End Mills Cover a Variety of Operations. Harvi™ III Aero Solid Carbide End Mills Feature Unequal Flute Spacing for Chatter-Free Machining At Highest Feed Rates. Eccentric Relief Grind for Higher Edge Stability & Higher Feed Rates. Center Cutting for Plunging & Ramping Operations. |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | HA3A6BN0500S100HA |
| System Of Measurement | Fractional Inch |
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 1/2 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.5000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Nose Radius (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 1.0000 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | +0.00000/-0.00043 in |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | HARVI III HA3R |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Additional Information | Versatile Solid Carbide End Mill for Stainless Steel, & High-Temperature Alloys. Harvi™ III Aero Solid Carbide End Mills Cover a Variety of Operations. Harvi™ III Aero Solid Carbide End Mills Feature Unequal Flute Spacing for Chatter-Free Machining At Highest Feed Rates. Eccentric Relief Grind for Higher Edge Stability & Higher Feed Rates. Center Cutting for Plunging & Ramping Operations. |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | HA3A6BN0500S100HA |
| System Of Measurement | Fractional Inch |
| MSC Part # | 67205393 |
| Mfr Part # | 7077137 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
