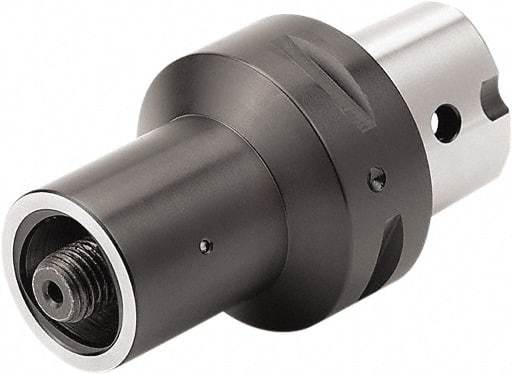

Seco - C5 Outside Modular Connection, C4 Inside Modular Connection, Capto to Capto Reducing Adapter - 65mm Projection, 40mm Nose Diam, Through Coolant
Item #: 68276369
Brand: Seco
Model #: 15938
Exact Tooling IR#: 04
Features and Benefits
Reducing adapters are used with smaller taper shank toolholders and in machine spindles with larger tapers.
| Product Specifications | |
|---|---|
| Type | Reducing Adapter |
| Taper Adapter Type | Capto to Capto |
| Outside Modular Connection Size | C5 |
| Inside Modular Connection Size | C4 |
| Projection (mm) | 65.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Nose Diameter (mm) | 40.00 |
| Collar Diameter (Decimal Inch) | 1.9685 |
