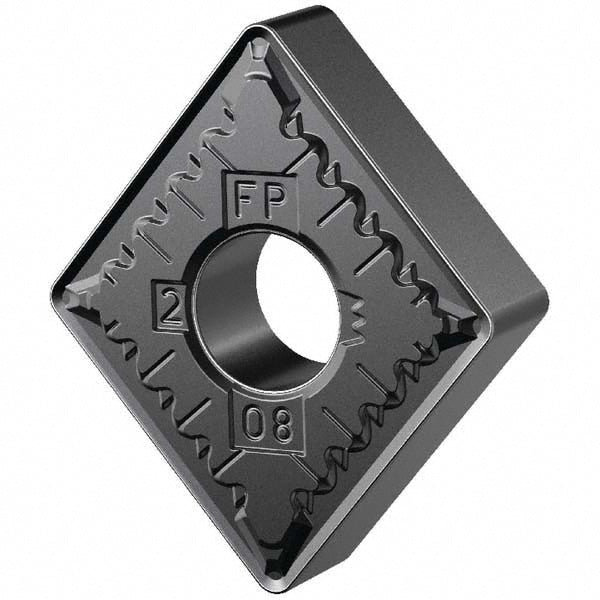

Turning Insert: CNMG431FP KCU10B, Carbide
Item #: 80133796
Brand: Kennametal
Model #: 7093474
Product Specifications
| ANSI Insert Code | CNMG431 |
| ISO Insert Code | CNMG120404 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | KCU10B |
| Coating/Finish | AlTiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Width (Inch) | 3/16 |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; K; M; N |
| Chip Breaker | FP |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (mm - 2 Decimals) | 4.76 |
| ANSI Size Code | 431 |
| ISO Size Code | 120404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| Country of Origin | China |
