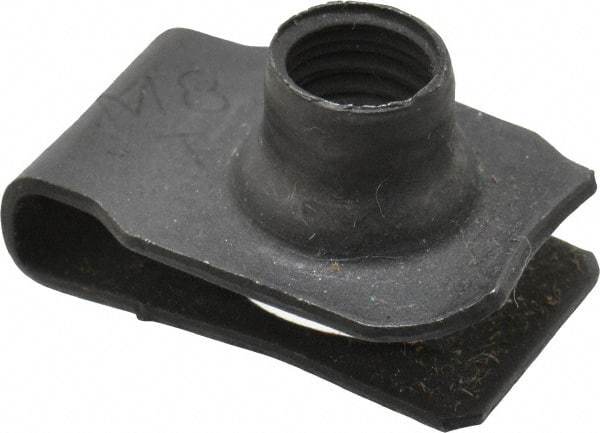

Au-Ve-Co Products - M8x1.25 Screw, 0.8 to 4mm Thick, Spring Steel Extruded Tapped Hole U Nut - 9/16" Center Edge, Black Phosphate Finish
Item #: 67745448
Brand: Au-Ve-Co Products
Model #: 11629
Exact Tooling IR#: 04
Features and Benefits
U nuts clip onto the edge of sheet metal. They are shaped like the letter U and are used in panel assembly.
Extruded tapped hole U nuts push the workpiece material downward to create a tapped hole. They are used in thin materials.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | U Nut |
| U Nut Type | Extruded Tapped Hole |
| System of Measurement | Metric |
| Screw Size | M8x1.25 |
| Material | Spring Steel |
| Minimum Material Thickness (Decimal Inch) | 0.0315 |
| Minimum Material Thickness (mm) | 0.80 |
| Maximum Material Thickness (Decimal Inch) | 0.1575 |
| Maximum Material Thickness (mm) | 4.00 |
| Finish/Coating | Black Phosphate |
| Center to Edge (Inch) | 9/16 |
| Center to Edge (mm) | 14.29 |
