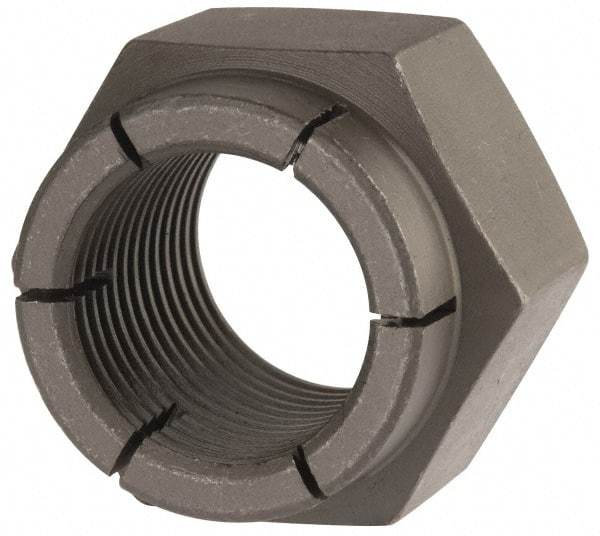

Flex-Loc - 1-12 UNJF Grade 2 Hex Lock Nut with Expanding Flex Top - 1-7/16" Width Across Flats, Uncoated, Meets Military Specifications
Item #: 67542407
Brand: Flex-Loc
Model #: 30FC-1612
Exact Tooling IR#: 04
Features and Benefits
Hex lock nuts are the most common type of lock nut. They have six uniform sides that create a flat bearing surface.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Hex Lock Nut |
| Material | Steel |
| Thread Size | 1-12 |
| Height (Decimal Inch) | 1.1340 |
| Material Grade | Grade 2 |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Locking Style | Expanding Flex Top |
| Flange Diameter (Decimal Inch) | 1.4270 |
| Width Across Flats (Inch) | 1-7/16 |
| Width Across Flats (Decimal Inch) | 1.4375 |
| Thread Standard | UNJF |
| Thread Fit Class | 3B |
| Fastener Standard | AS8879 |
| Military Specification | Meets Military Specifications |
