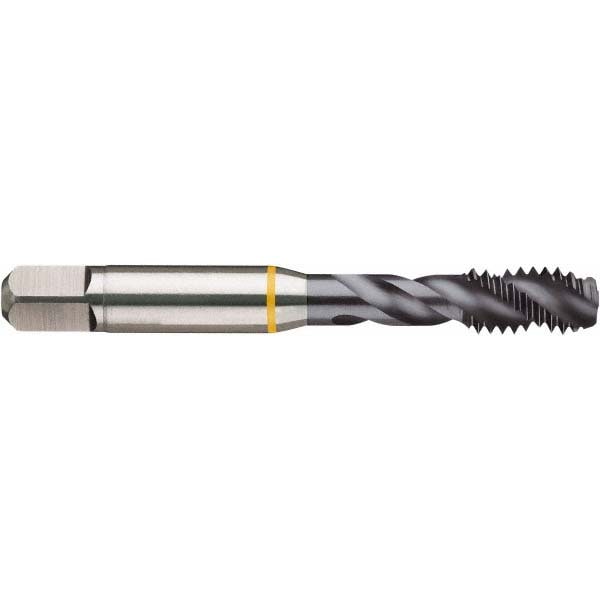

Spiral Flute Tap: UNF, 3 Flute, Modified Bottoming, 2B/3B Class of Fit, Cobalt, Ignator Finish
Item #: 04701488
Brand: Guhring
Model #: 9048825190500
Product Specifications
| Thread Size (Inch) | 3/4-16 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Thread Limit | H5 |
| Class Of Fit | 2B/3B |
| Coating/Finish | Proprietary |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Ductile Iron; Malleable Cast Iron; Alloy Steel; Stainless Steel; Cast Iron; Case-Hardened Steel; Free-Cutting Steel; Structural Steel; Tool Steel; Aluminum Alloy; Heat-Treated Steel; Alloy Tool Steel |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Proprietary Coating/Finish | Ignator |
| Oversize | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel |
| Threads per Inch | 16 |
| Thread Length (Decimal Inch) | 0.6290 |
| Overall Length (Decimal Inch) | 4.2520 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Primary Workpiece Material Code | P; K; M; N |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Tapping Depth (Decimal Inch) | 0.6874 |
| Square Size (Decimal Inch) | 0.4420 |
| Flute Style | Fast |
| Series | 4882 |
| UNSPSC Code | 23241600 |
