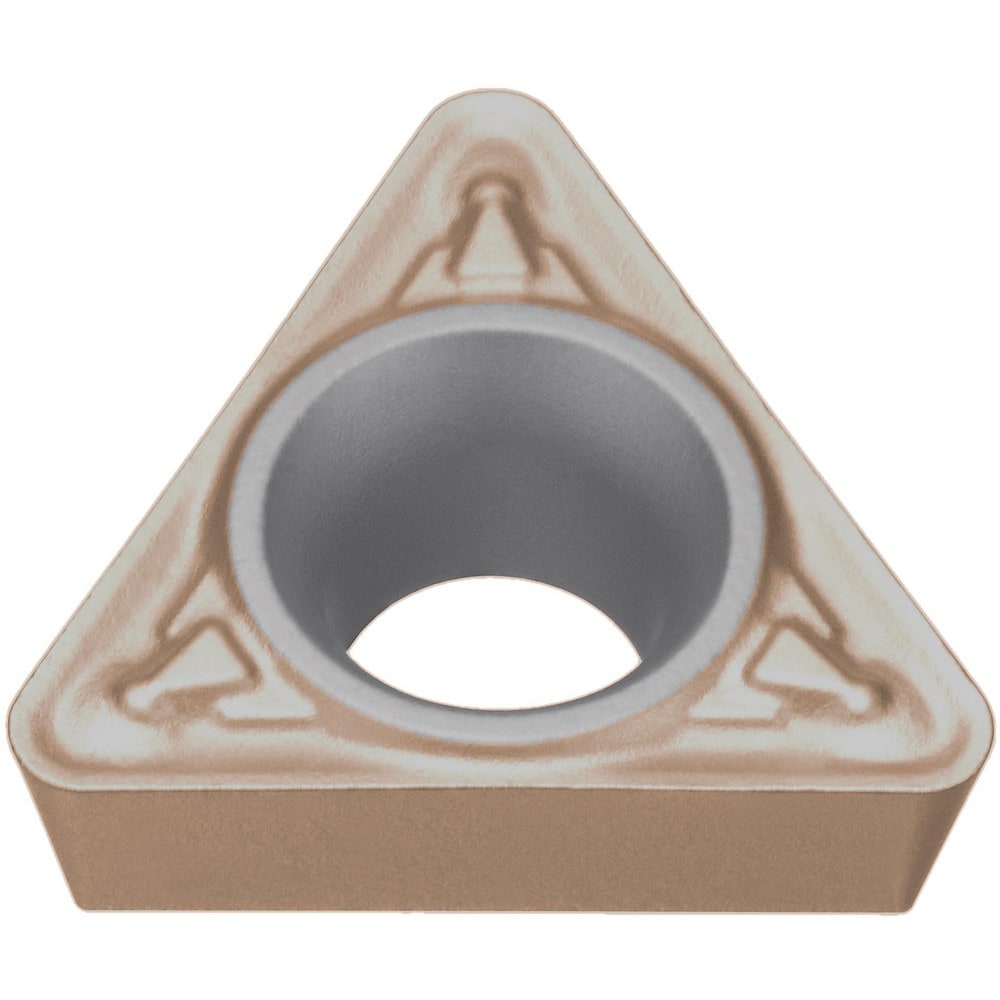

Turning Insert: TPMH322MV MP3025, Cermet
Item #: 05774161
Brand: Mitsubishi
Model #: 603434
Product Specifications
| ANSI Insert Code | TPMH322 |
| ISO Insert Code | TPMH160308 |
| Relief Angle | 11 |
| Insert Style | TPMH |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 60 |
| Manufacturer Grade | MP3025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cermet |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Clearance Code | P |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | MV |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
