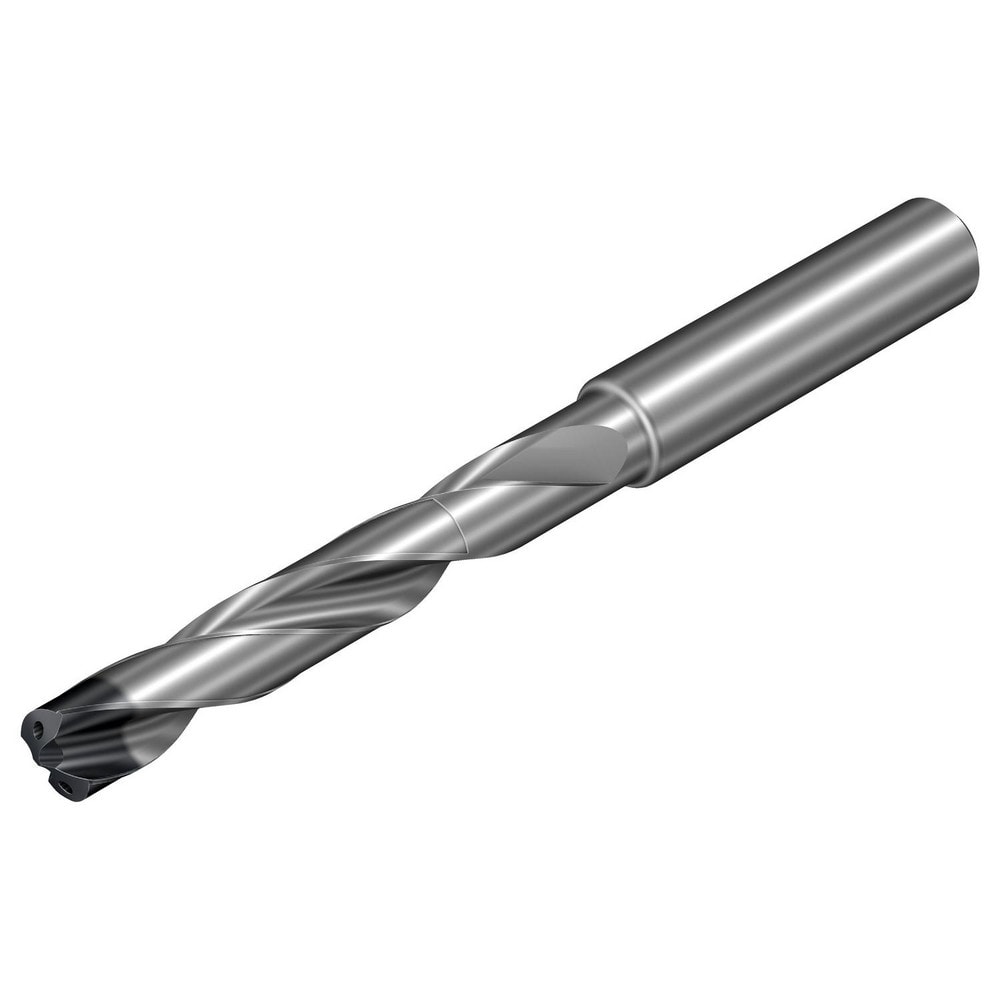

Taper Length Drill: 0.5000" Dia, 140 deg, Solid Carbide
Item #: 01163518
Brand: Sandvik Coromant
Model #: 8421335
Product Specifications
| Drill Bit Size (mm) | 12.70 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Threaded Shank | No |
| Shank Diameter (mm) | 14.0000 |
| Flute Length (Decimal Inch) | 5.9449 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (mm) | 202 |
| Overall Length (Decimal Inch) | 7-3/4 |
| Material Application3 | Superalloys & Titanium |
| Series | CoroDrill 860 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 4.0909 |
| Maximum Drilling Depth (mm) | 103.91 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.000 |
| Drill Point Length (Decimal Inch) | 0.0910 |
| Flute Length (mm) | 151.00 |
| Drill Point Length (mm) | 2.31 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
