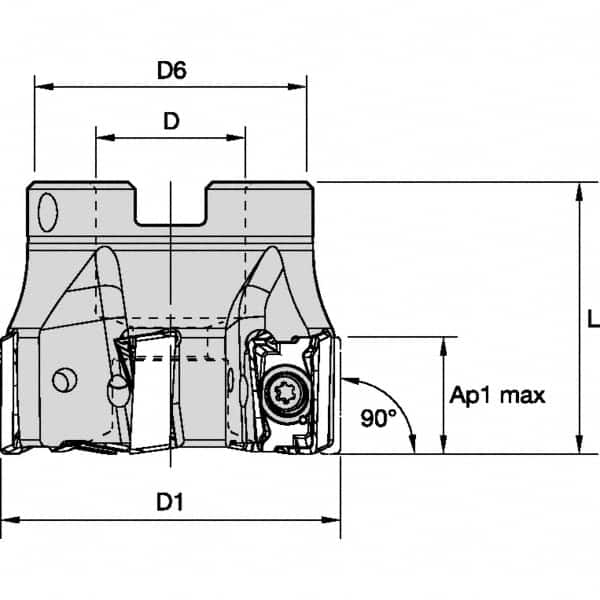

5″ Cut Diam, 1-1/2″ Arbor Hole Diam, 15.5mm Max Depth, Indexable Square-Shoulder Face Mill Takes 9 Inserts, 0° Lead Angle, 60.45mm High, LNGU15T608SRGE Insert Style, Through Coolant, Series MILL 4-15
Item #: 66315847
Brand: Kennametal
Model #: 5613026
Product Specifications
Maximum Cutting Diameter (Inch) | 5 |
Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
Maximum Cutting Diameter (mm) | 127.00 |
Maximum Depth of Cut (mm) | 15.50 |
Maximum Depth of Cut (Decimal Inch) | 0.6100 |
Arbor Hole Diameter (mm) | 38.10 |
Arbor Hole Diameter (Inch) | 1-1/2 |
Arbor Hole Diameter (Decimal Inch) | 1.5000 |
Compatible Insert Size Code | LNGU15T608SRGE |
Cutting Direction | Right Hand |
Insert Holding Method | Screw Clamping |
Lead Angle | 0 |
Series | MILL 4-15 |
Maximum Body Diameter (Decimal Inch) | 4.8760 |
Overall Height (Mm - 5 Decimals) | 60.45 |
Overall Height (Decimal Inch) | 2.3800 |
Hub Diameter (mm) | 99.25 |
Hub Diameter (Decimal Inch) | 3.9070 |
Maximum RPM | 9660 |
Toolholder Material | Steel |
Coolant Through | Yes |
Number Of Cutter Inserts | 9 |
Number Of Flutes | 9 |
