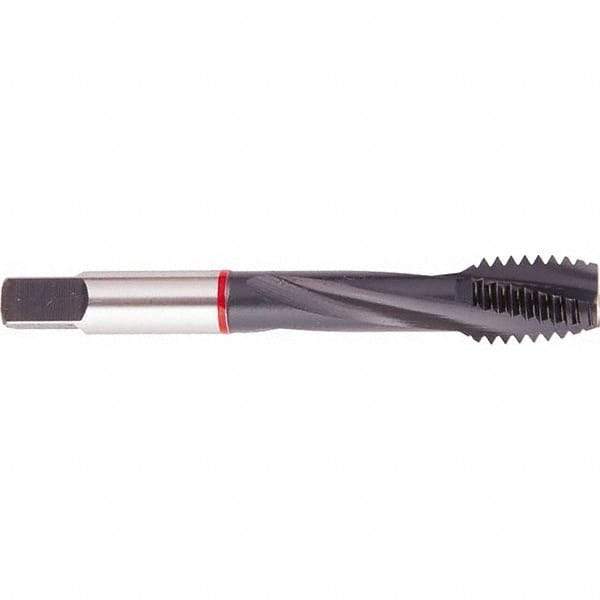

Regal Cutting Tools - #10-32 UNF 3 Flute 2B Modified Bottoming Spiral Flute Tap - Powdered Metal, Oxide Finish, Right Hand Flute, Right Hand Thread, H3, Series Triple Crown
Item #: 66129438
Brand: Regal Cutting Tools
Model #: 030438TC
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Oversize | No |
| Flute Type | Spiral |
| Series/List | Triple Crown |
| Material Application | Brass; Bronze; Carbon Steel; Nickel Alloys; Stainless Steel; Titanium |
