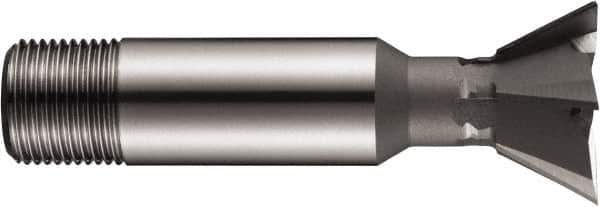

DORMER - 1-3/8" Diam x 0.5709" Width of Cut, 60° Included Angle, High Speed Steel Dovetail Cutter - 1" Shank Diam, Uncoated
Item #: 65638348
Brand: DORMER
Model #: 0192306
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Included Angle | 60 |
| Cutting Diameter (Inch) | 1-3/8 |
| Cutting Diameter (Decimal Inch) | 1.3750 |
| Cutting Width (Decimal Inch) | 0.5709 |
| Cutting Width (mm) | 14.500 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1 |
| Overall Length (mm) | 82.50 |
| Shank Length (mm) | 16.00 |
| Material Grade | M2 |
| Number of Teeth | 8 |
| Weldon Flat | No |
