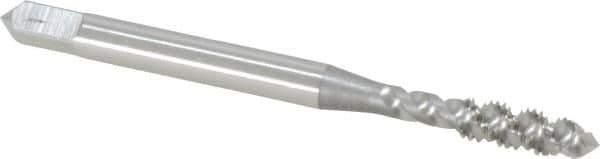

OSG - M4x0.70 Metric Coarse 3 Flute 6H Plug Spiral Flute Tap - High Speed Steel, Bright Finish, 2-1/8" OAL, Right Hand Flute, Right Hand Thread, D4, Series 142
Item #: 65015042
Brand: OSG
Model #: 1985400
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4x0.70 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D4 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-1/8 |
| Helix Angle | 50 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (Inch) | 3/4 |
| Flute Type | Fast Spiral |
| Series/List | 142 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
