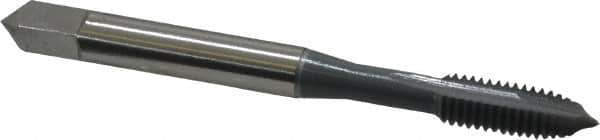

OSG - #0-80 UNF, 2 Flute, elektraLUBE Finish, High Speed Steel Spiral Point Tap - Bottoming Chamfer, Right Hand Thread, 1-5/8" OAL, 5/16" Thread Length, 2B Class of Fit, Series 105B
Item #: 64942097
Brand: OSG
Model #: 3000102
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
elektraLUBE prevents welding, loading and galling between the tap and the workpiece. It is commonly used on stainless steels, high nickel alloys, aluminum and copper. elektraLUBE is a proprietary coating exclusive to OSG Tap and Die, Inc.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #0-80 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Thread Limit | H2 |
| Finish/Coating | elektraLUBE |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 1-5/8 |
| Oversize | No |
| Thread Standard | UNF |
| Thread Length (Inch) | 5/16 |
| Series/List | 105B |
