Accupro - JT3, 13/64 to 3/4" Capacity, Tapered Mount Drill Chuck - Keyed, 65mm Sleeve Diam, 85mm Open Length - Exact Industrial Supply

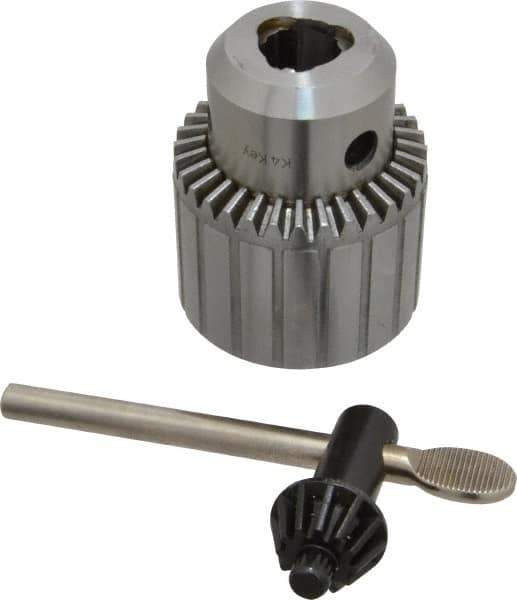

Accupro - JT3, 13/64 to 3/4" Capacity, Tapered Mount Drill Chuck - Keyed, 65mm Sleeve Diam, 85mm Open Length


Item #: 63673651
Brand: Accupro
Exact Tooling IR#: 04

Features and Benefits

Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Plain bearings are designed with a 1-piece gearing and sleeve for reducing teeth breakage. They are used for medium duty operations with stationary drilling, turning, milling and woodworking machines.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Maximum Drill Chuck Capacity (mm) 19.05
Maximum Drill Chuck Capacity (Inch) 3/4
Maximum Drill Chuck Capacity (Decimal Inch) 0.7500
Minimum Drill Chuck Capacity (mm) 5.00
Minimum Drill Chuck Capacity (Inch) 13/64
Minimum Drill Chuck Capacity (Decimal Inch) 0.1969
Mount Type Tapered Mount
Mounting Size JT3
Key Style Keyed
Bearing Type Plain Bearing
Material Steel
Closed Length (mm) 116.00
Open Length (mm) 85.00
Sleeve Diameter (mm) 65.00
Key Number K4
Additional Information Equipped with positive drive slot
$169.35

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
