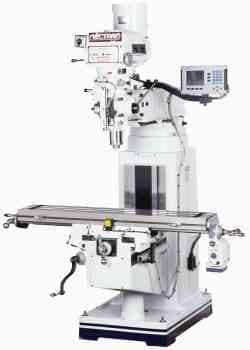

![Vectrax - 9" Table Width x 49" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/0169057-21_8344c87b-7394-43e8-8299-79393bbed24d_1024x1024.jpg?v=1585922753)
Vectrax - 9" Table Width x 49" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 63351274
Brand: Vectrax
Model #: 0953802/7549442
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications | |
---|---|
Spindle Speed Control | Variable Speed Pulley |
Table Length (Inch) | 49 |
Table Width (Inch) | 9 |
Phase | 3 |
Longitudinal Travel (Decimal Inch) | 32.0000 |
Cross Travel (Decimal Inch) | 12.0000 |
Knee Travel (Decimal Inch) | 16.0000 |
Number of Spindle Speeds | Variable |
Maximum Spindle Speed (RPM) | 4200.00 |
Minimum Spindle Speed (RPM) | 80.00 |
Includes | Newall DP700 DRO (MSC 71303457); AL-500PX Power Feed (MSC 41046731) |
Spindle Travel Length (Inch) | 5 |
Spindle Taper Size | R8 |
Quill Diameter (Decimal Inch) | 3.3750 |
Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
Minimum Spindle to Table Distance (Inch) | 2-1/2 |
Maximum Spindle to Table Distance (Inch) | 18-3/8 |
Minimum Spindle to Column Distance (Decimal Inch) | 4.0000 |
Maximum Spindle To Column Distance (Decimal Inch) | 25.0000 |
Table Load Capacity (Lb.) | 750.00 |
Number of T-Slots | 3 |
Left-Hand Head Tilt (Degrees) | 90.00 |
Right-Hand Head Tilt (Degrees) | 90.00 |
Forward Head Tilt (Degrees) | 45.00 |
Backward Head Tilt (Degrees) | 45.00 |
Ram Travel Length (Inch) | 16-3/8 |
Horsepower (HP) | 3.00 |
Voltage | 220/440 |
Overall Length (Inch) | 58 |
Overall Height (Inch) | 86 |
Overall Depth (Inch) | 56 |
