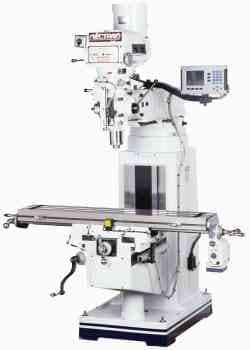

Vectrax - 10" Table Width x 54" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 5 hp
Item #: 63351241
Brand: Vectrax
Model #: 0951693/7950703
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Cross Travel (Decimal Inch) | 16.5000 |
| Knee Travel (Decimal Inch) | 17.5000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 3600.00 |
| Minimum Spindle Speed (RPM) | 70.00 |
| Includes | Newall DP700 DRO (MSC 71303382); Servo 200-150 Table Feed (MSC 79507034) |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Minimum Spindle to Table Distance (Inch) | 2-1/2 |
| Maximum Spindle to Table Distance (Inch) | 20 |
| Table Load Capacity (Lb.) | 750.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Decimal Inch) | 18.0000 |
| Horsepower (HP) | 5.00 |
| Voltage | 220/440 |
| Overall Length (Inch) | 72 |
| Overall Height (Inch) | 89 |
| Overall Depth (Inch) | 68 |
