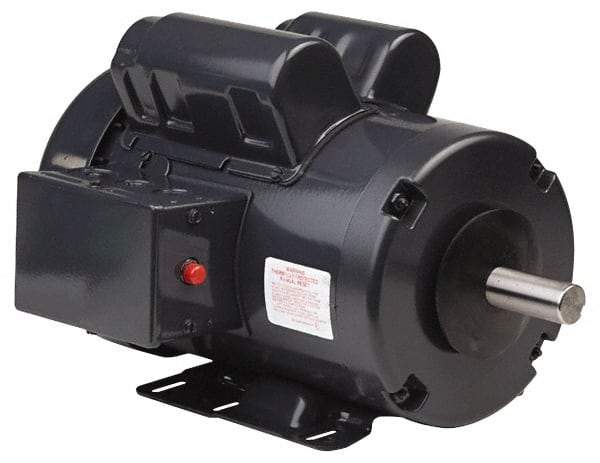

US Motors - 3/4 hp, TEFC Enclosure, No Thermal Protection, 1,140 RPM, 115/208-230 Volt, 60 Hz, Single Phase Capacitor Start-Cap Run Motor - Size 56H Frame, Rigid Base Mount, 1 Speed, Ball Bearings, 10.05 Full Load Amps, B Class Insulation, Reversible
Item #: 62553300
Brand: US Motors
Model #: T34C3JH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Capacitor Start-Cap Run |
| Type of Enclosure | TEFC |
| Horsepower | 3/4 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1140 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 56H |
| Mount Type | Rigid Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 10.05 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 13.3800 |
| Shaft Diameter x Length (Inch) | 5/8 x 1-7/8 |
| Full Load Efficiency Rating | 75.9 |
| Motor Run Capacitor Micro Farid | 12.5 |
| Motor Run Capacitor Volts | 370 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Length of Enclosure (Decimal Inch) | 11.505 |
| PSC Code | 6105 |
