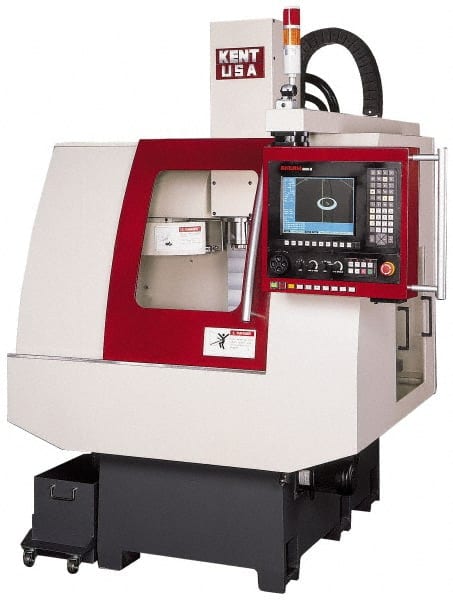

CNC Milling Machine: Anilam CT40 Taper, 17.8″ Longitudinal Travel, 13.8″ Cross Travel, 10 hp
Item #: 61926168
Brand: KENT USA
Model #: JM-450
Product Specifications
| CNC Controller Brand | Anilam |
| CNC Controller Model | 6000i |
| Table Length (Decimal Inch) | 21.6000 |
| Longitudinal Travel (Decimal Inch) | 17.8000 |
| Cross Travel (Decimal Inch) | 13.8000 |
| Knee Travel (Decimal Inch) | 13.8000 |
| Minimum Spindle Speed | 90 RPM |
| Maximum Spindle Speed | 8000 RPM |
| Spindle Taper Size | CT40 |
| Minimum Spindle to Table Distance (Decimal Inch) | 4.0000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.8000 |
| Number Of T-slots | 3 |
| Voltage | 220 |
| Horsepower | 10.00 |
| Overall Height (Decimal Inch) | 90.0000 |
| Overall Height (Inch) | 90 |
| Overall Length (Decimal Inch) | 60.0000 |
| Overall Length (Inch) | 60 |
| Overall Depth (Inch) | 87 |
| Overall Depth (Inch) | 84.0000 |
| Table Width/Diameter (Decimal Inch) | 13.8000 |
