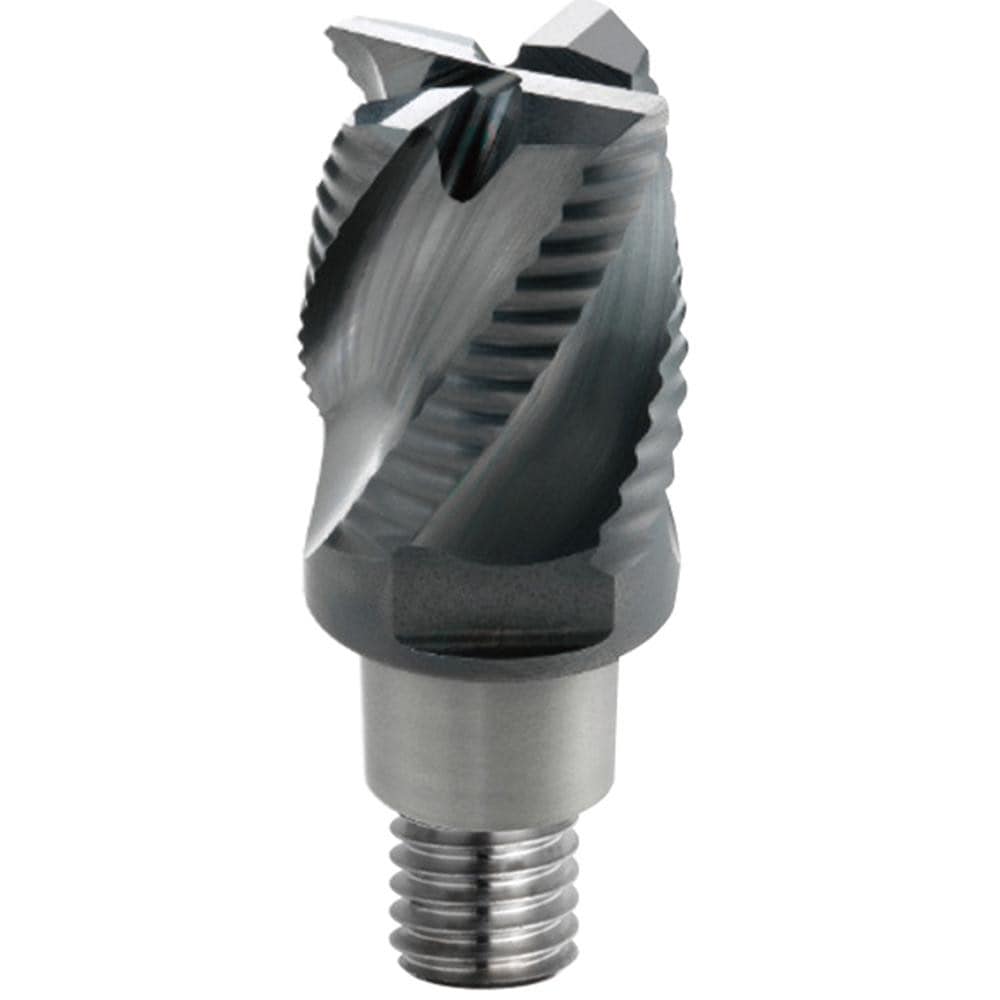

Roughing End Mill Heads; Mill Diameter (mm): 12.70; Mill Diameter (Decimal Inch): 0.5000; Pitch: Variable; Connection Type: iMX12; Length of Cut (mm): 13.2000; End Type: Square; Material: Carbide; Overall Length (mm): 34.75
Item #: 36162402
Brand: Mitsubishi
Model #: 827278
Product Specifications
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Pitch | Variable |
| Connection Type | iMX12 |
| Length of Cut (mm) | 13.2000 |
| End Type | Square |
| Material | Carbide |
| Overall Length (mm) | 34.75 |
| Centercutting | No |
| Corner Radius (mm) | 0.01 |
| Chamfer Width (Decimal Inch) | 0 |
| Coolant Induced | No |
| Material Grade | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Angle | 35.00 |
| Helix Style | Variable |
| Series/List | iMX |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5200 |
| Number Of Flutes | 4 |
| Finish Coating | AlCrN |
| Mill Diameter (Fractional Inch) | 1/2 |
| UNSPSC Code | 27112803 |
