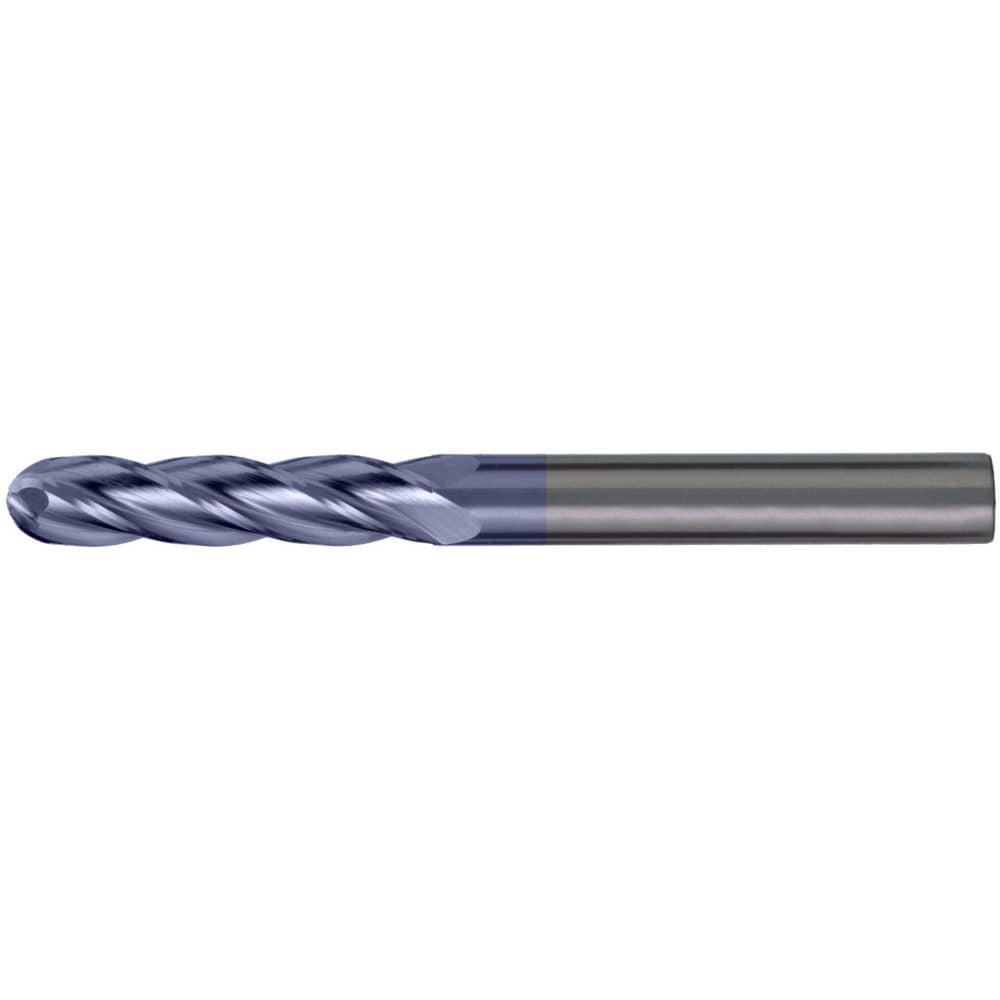

Ball End Mill: 5/8" Dia, 2-1/4" LOC, 4 Flute, Solid Carbide
Item #: 76613496
Brand: Cleveland
Model #: C83568
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (mm) | 15.88 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (mm) | 57.15 |
| Coating/Finish | TiAlN |
| Overall Length (Inch) | 5 |
| Shank Diameter (Inch) | 5/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Chipbreaker | No |
| Undercutting | Yes |
| Length Type | Long |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (mm) | 15.88 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Material Grade | Submicron |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | CEM-SE-4B-TA |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| System Of Measurement | Fractional Inch |
| Country of Origin | UNITED STATES |
