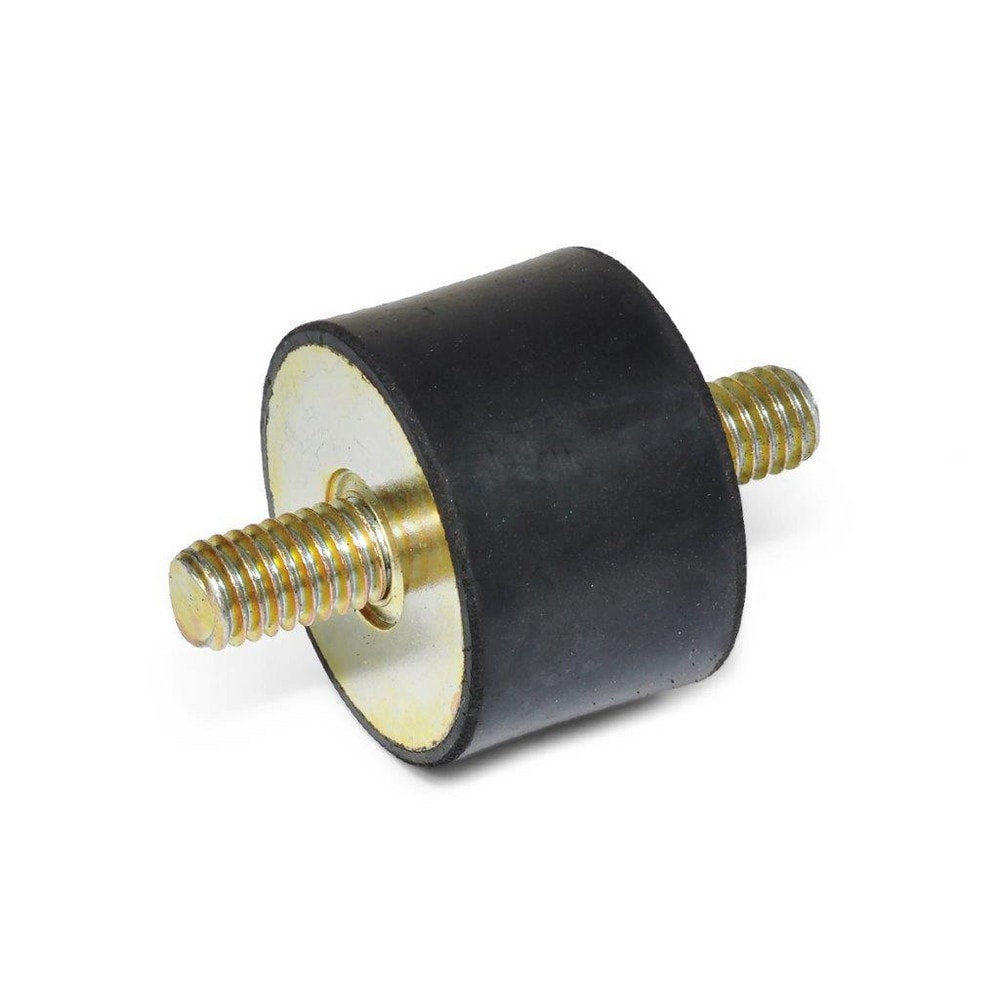

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 57.80 N; Top Diameter: 14.00; Bottom Diameter: 14; Thread Size: #10-32; Overall Width: 14 mm
Item #: 67907543
Brand: J.W. Winco
Model #: 351.1-14-13-10-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 57.80 N |
| Top Diameter | 14.00 |
| Bottom Diameter | 14 |
| Thread Size | #10-32 |
| Overall Width | 14 mm |
| Overall Diameter | 14 mm |
| Thread Length (Decimal Inch) | 0.3900 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 33 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 57.80 N |
| Top Diameter | 14.00 |
| Bottom Diameter | 14 |
| Thread Size | #10-32 |
| Overall Width | 14 mm |
| Overall Diameter | 14 mm |
| Thread Length (Decimal Inch) | 0.3900 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 33 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67907543 |
| Mfr Part # | 351.1-14-13-10-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
