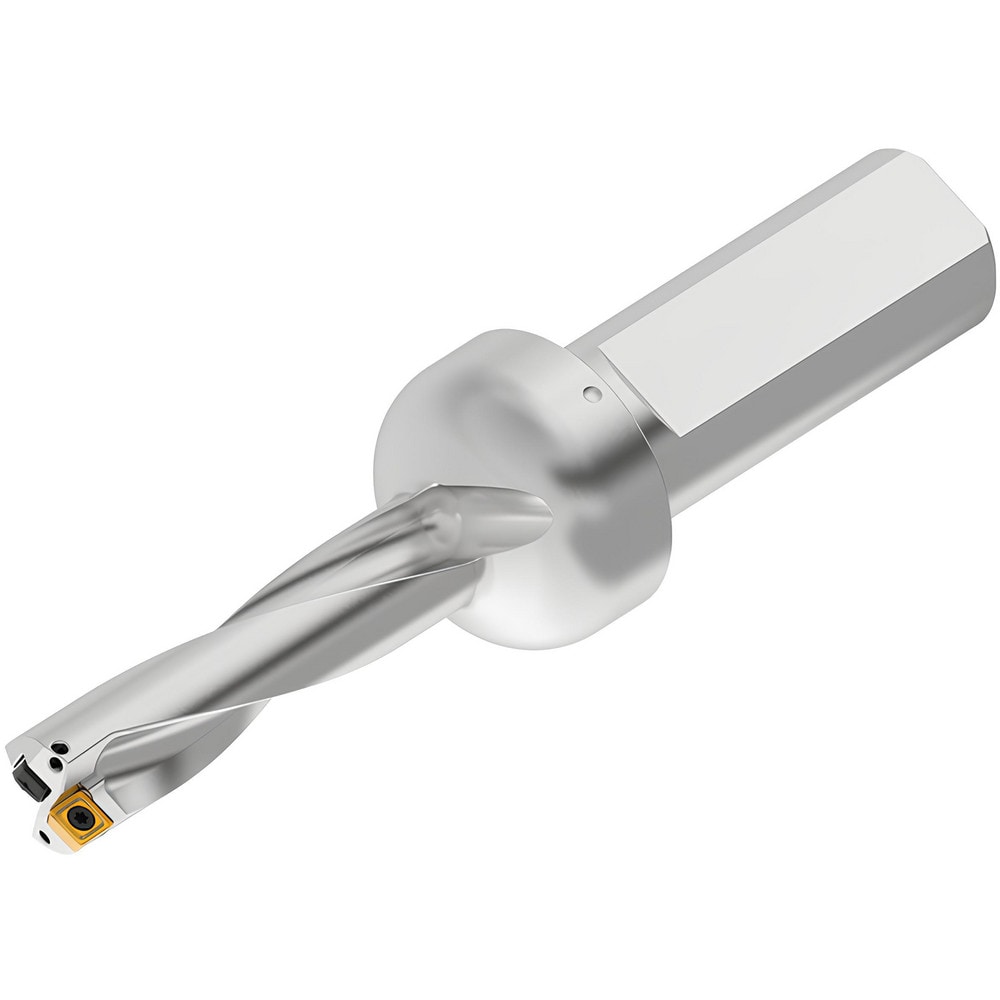

Indexable Insert Drill: DFPR0625R4WB075, 0.6447" Max Dia, 2.5000" Max Depth, 4xD, 0.7500" Shank Dia
Item #: 02322030
Brand: Kennametal
Model #: 7034849
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (Decimal Inch) | 0.6447 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 050203; 050204 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.2160 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 2.5000 |
| Body Length (Decimal Inch) | 3.2480 |
| Shank Length (Decimal Inch) | 1.9680 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2070x0.0940; 0.2090x0.0940 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR050203__I; DFPR050204__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M2-0.4x4.5T6 |
| Coolant Through | Yes |
