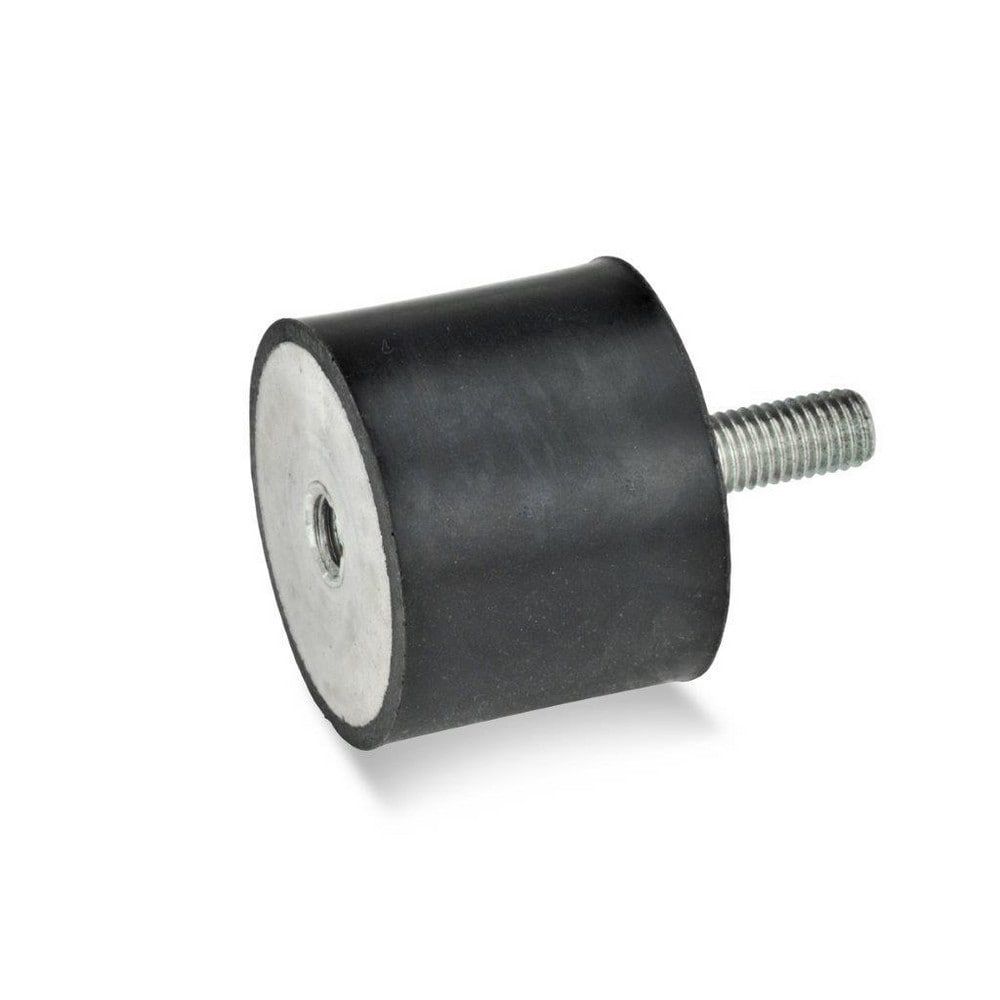

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 430.00 N; Top Diameter: 20.00; Bottom Diameter: 20; Thread Size: M6x1; Overall Width: 20 mm
Item #: 69298693
Brand: J.W. Winco
Model #: 351-20-20-M6-ES-55
Product Specifications
Isolator Type | Plate/Stud |
Insert Material | Zinc-Plated Steel |
Isolator Material | Natural Rubber |
Maximum Load Capacity | 430.00 N |
Top Diameter | 20.00 |
Bottom Diameter | 20 |
Thread Size | M6x1 |
Overall Width | 20 mm |
Overall Diameter | 20 mm |
Thread Length (Decimal Inch) | 0.7100 |
Deflection | 0.2000 |
Hardness Rating | Shore 55A |
Mount Type | Stud; Plate |
Shape | Round |
Thread Depth | 6.0000 |
Thread Pitch | 1 mm |
Thread Standard | Metric |
Height (Decimal Inch) | 38 mm |
UNSPSC Code | 23153130 |
Isolator Type | Plate/Stud |
Insert Material | Zinc-Plated Steel |
Isolator Material | Natural Rubber |
Maximum Load Capacity | 430.00 N |
Top Diameter | 20.00 |
Bottom Diameter | 20 |
Thread Size | M6x1 |
Overall Width | 20 mm |
Overall Diameter | 20 mm |
Thread Length (Decimal Inch) | 0.7100 |
Deflection | 0.2000 |
Hardness Rating | Shore 55A |
Mount Type | Stud; Plate |
Shape | Round |
Thread Depth | 6.0000 |
Thread Pitch | 1 mm |
Thread Standard | Metric |
Height (Decimal Inch) | 38 mm |
UNSPSC Code | 23153130 |
MSC Part # | 69298693 |
Mfr Part # | 351-20-20-M6-ES-55 |
Country of Origin Country of Origin is subject to change | Hungary |
