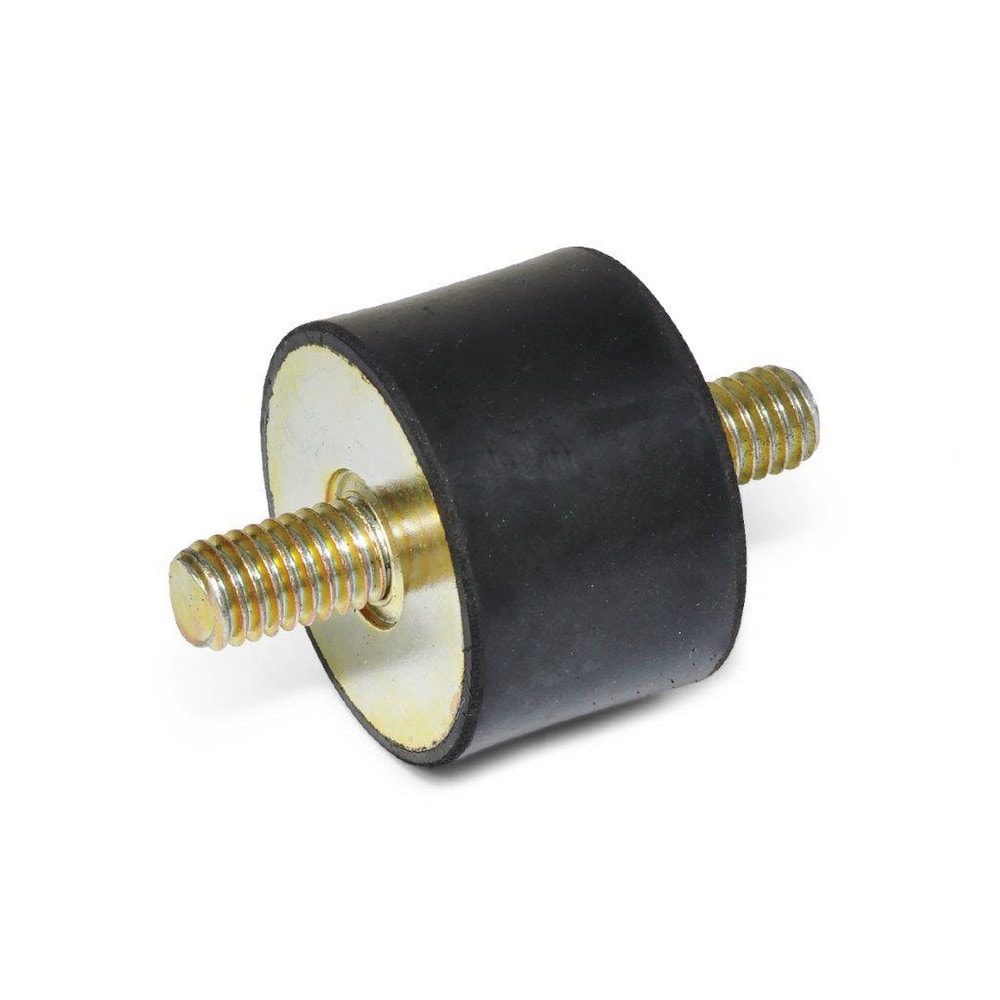

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 814.00 N; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: 1/4-20; Overall Width: 25 mm

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 814.00 N; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: 1/4-20; Overall Width: 25 mm


Item #: 67907808
Brand: J.W. Winco
Model #: 351.1-25-19-1/4-55

Product Specifications

Isolator Type Stud/Stud
Insert Material Zinc-Plated Steel
Isolator Material Natural Rubber
Maximum Load Capacity 814.00 N
Top Diameter 25.00
Bottom Diameter 25
Thread Size 1/4-20
Overall Width 25 mm
Overall Diameter 25 mm
Thread Length (Decimal Inch) 0.6300
Deflection 0.1500
Hardness Rating Shore 55A
Mount Type Stud
Shape Round
Thread Pitch 1.270 mm
Thread Standard UNC
Height (Decimal Inch) 51 mm
UNSPSC Code 23153130
Isolator Type Stud/Stud
Insert Material Zinc-Plated Steel
Isolator Material Natural Rubber
Maximum Load Capacity 814.00 N
Top Diameter 25.00
Bottom Diameter 25
Thread Size 1/4-20
Overall Width 25 mm
Overall Diameter 25 mm
Thread Length (Decimal Inch) 0.6300
Deflection 0.1500
Hardness Rating Shore 55A
Mount Type Stud
Shape Round
Thread Pitch 1.270 mm
Thread Standard UNC
Height (Decimal Inch) 51 mm
UNSPSC Code 23153130
MSC Part # 67907808
Mfr Part # 351.1-25-19-1/4-55
Country of Origin Country of Origin is subject to change Hungary
$2.74
