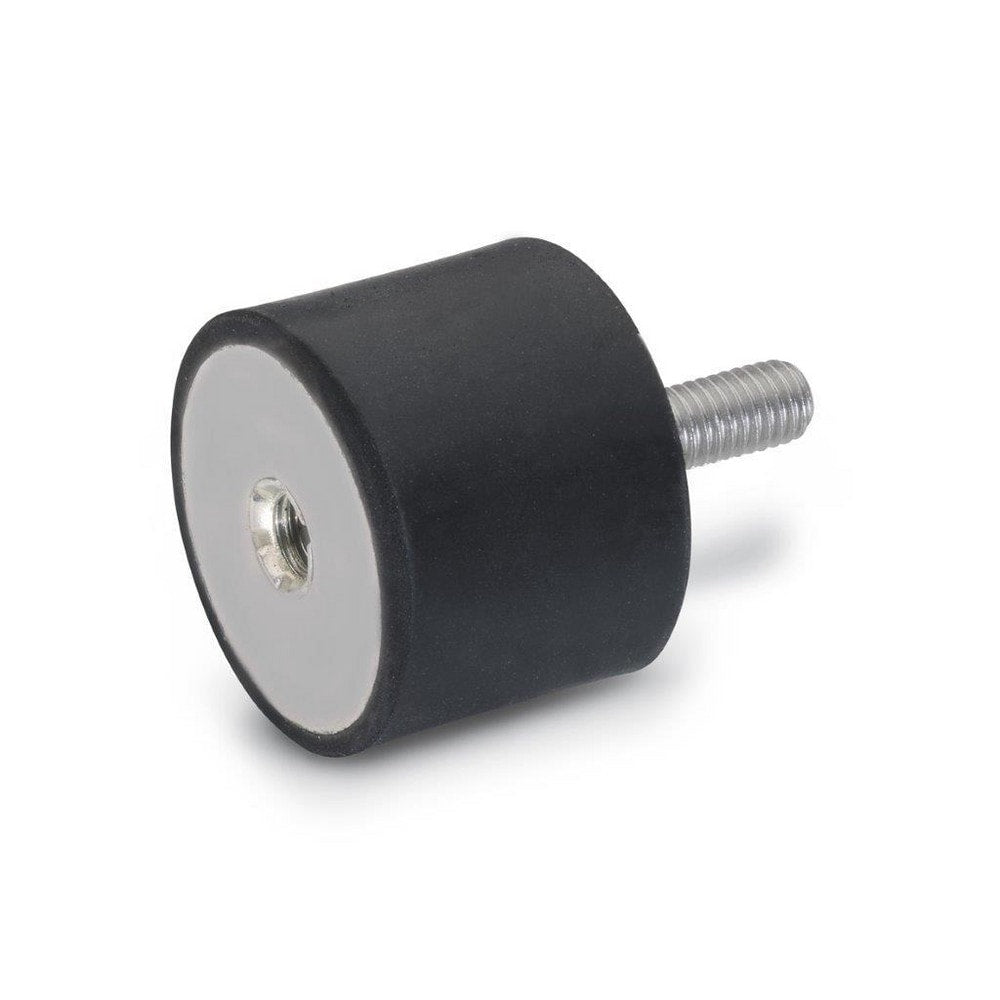

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 9050.00 N; Top Diameter: 79.00; Bottom Diameter: 79; Thread Size: 1/2-13; Overall Width: 79 mm
Item #: 67918433
Brand: J.W. Winco
Model #: 451.2-79-57-1/2-55
Product Specifications
Isolator Type | Plate/Stud |
Insert Material | Stainless Steel |
Isolator Material | Natural Rubber |
Maximum Load Capacity | 9050.00 N |
Top Diameter | 79.00 |
Bottom Diameter | 79 |
Thread Size | 1/2-13 |
Overall Width | 79 mm |
Overall Diameter | 79 mm |
Thread Length (Decimal Inch) | 1.2600 |
Deflection | 0.5600 |
Hardness Rating | Shore 55A |
Mount Type | Stud; Plate |
Shape | Round |
Thread Depth | 12.0000 |
Thread Pitch | 1.954 mm |
Thread Standard | UNC |
Height (Decimal Inch) | 89 mm |
UNSPSC Code | 23153130 |
Isolator Type | Plate/Stud |
Insert Material | Stainless Steel |
Isolator Material | Natural Rubber |
Maximum Load Capacity | 9050.00 N |
Top Diameter | 79.00 |
Bottom Diameter | 79 |
Thread Size | 1/2-13 |
Overall Width | 79 mm |
Overall Diameter | 79 mm |
Thread Length (Decimal Inch) | 1.2600 |
Deflection | 0.5600 |
Hardness Rating | Shore 55A |
Mount Type | Stud; Plate |
Shape | Round |
Thread Depth | 12.0000 |
Thread Pitch | 1.954 mm |
Thread Standard | UNC |
Height (Decimal Inch) | 89 mm |
UNSPSC Code | 23153130 |
MSC Part # | 67918433 |
Mfr Part # | 451.2-79-57-1/2-55 |
Country of Origin Country of Origin is subject to change | Hungary |
