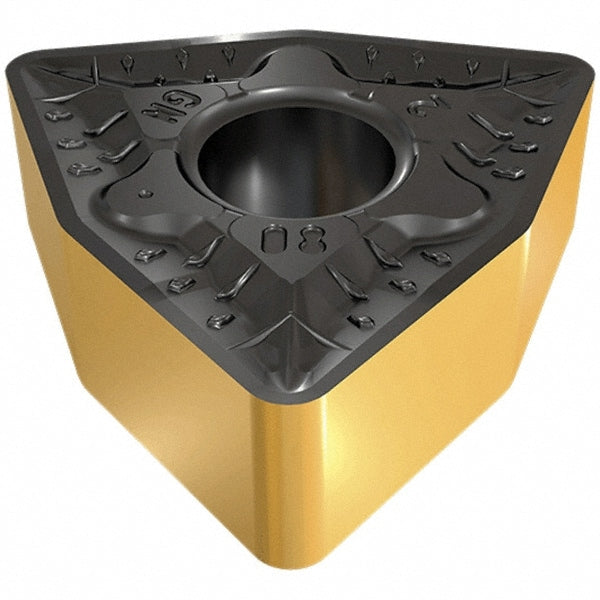

Turning Insert: WNMG431GN IC8250, Carbide
Item #: 40950404
Brand: Iscar
Model #: 5507826
Product Specifications
| ANSI Insert Code | WNMG431 |
| ISO Insert Code | WNMG080404 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | IC8250 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | W |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | GN |
| ANSI Size Code | 431 |
| ISO Size Code | 080404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
