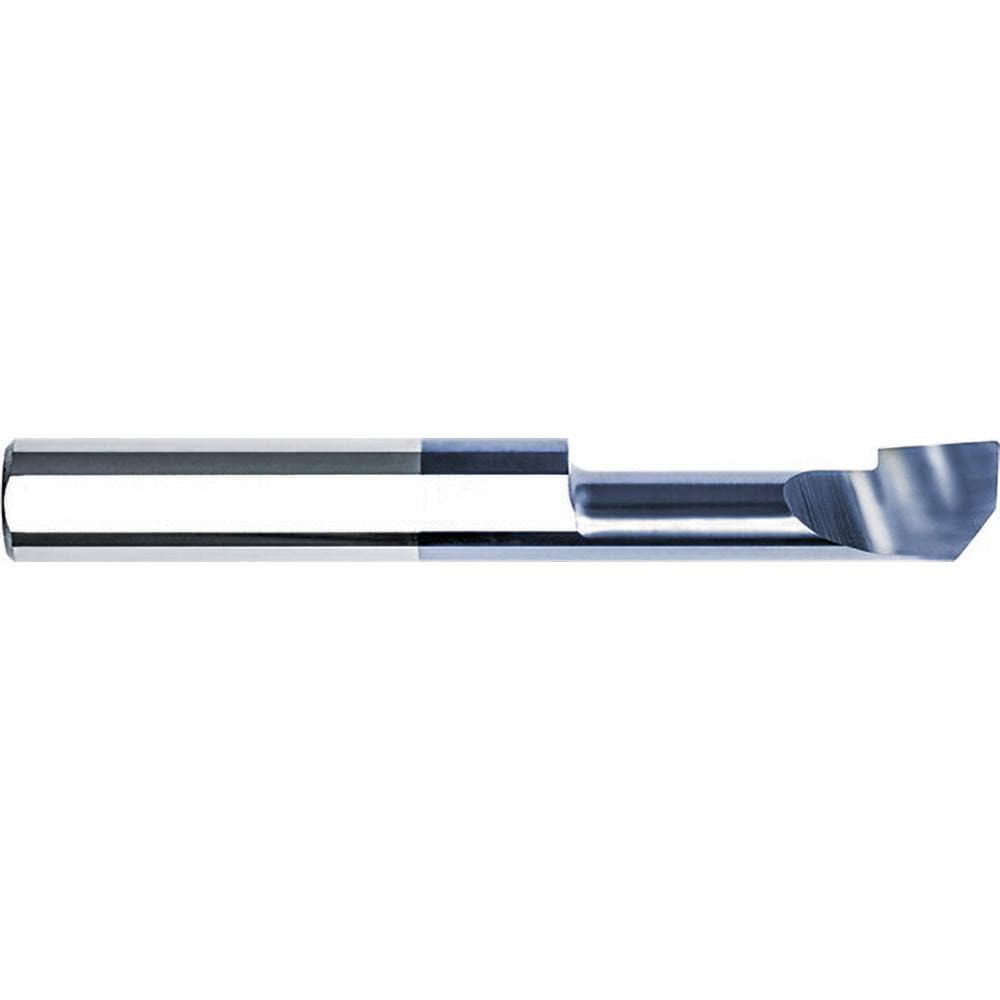

Boring Bar: 0.0500" Min Bore Dia, 0.3000" Max Bore Depth, Right Hand, 1/8" Shank Dia, Micrograin Solid Carbide
Item #: 09397977
Brand: Internal Tool
Model #: 18-1005
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0500 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 0.3000 |
| Projection (Decimal Inch) | 0.3000 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Bar End Angle | 2 |
| Series | 18 |
| Overall Length (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Bronze; Aluminum; Stainless Steel; Brass; Cast Iron; Titanium; Plastic; Nickel; Magnesium; Copper; Steel |
| Relief Angle | 3 |
| UNSPSC Code | 23241601 |
