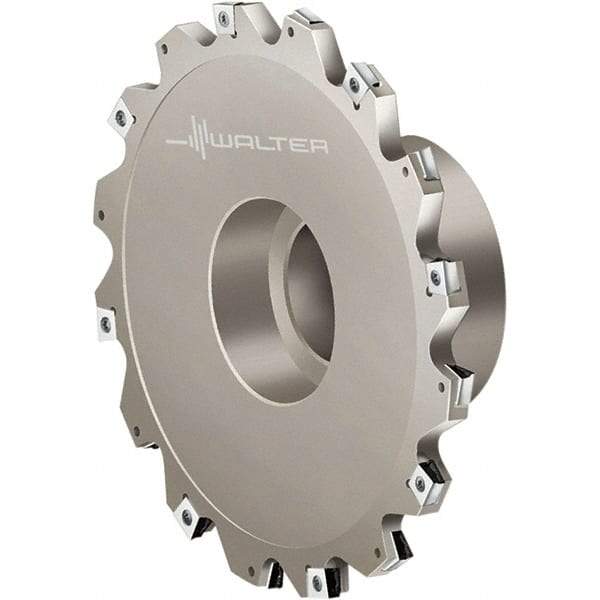

Walter - Shell Mount Connection, 2" Cutting Width, 1.44" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 8 Tooth Indexable Slotting Cutter - F4153.BN Toolholder, LN.U 080304 Insert, Right Hand Cutting Direction
Item #: 60410917
Brand: Walter
Model #: 5677476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.4400 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 8 |
| Toolholder Style | F4153.BN |
| Series | Xtra-tec |
| Insert Style | LN.U 080304 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Manufacturers Catalog Number | F4153.UBN38.152.Z08.06R |
| Complete Insert Compatibility1 | LNHU080304-B57T; LNHU080304-F57T; LNMU080304-B57T; LNMU080304-F57T |
