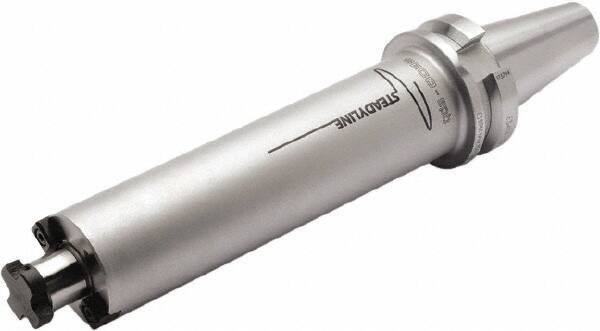

Seco - BT50 Taper Shank 22mm Pilot Diam Shell Mill Holder - 8.27" Flange to Nose End Projection, 1.89" Nose Diam, Through-Spindle & DIN Flange Coolant
Item #: 60162591
Brand: Seco
Model #: 50980
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Pilot Diameter (mm) | 22.00 |
| Pilot Diameter (Decimal Inch) | 0.8661 |
| Projection Flange to Nose End (Decimal Inch) | 8.2700 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.8900 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
