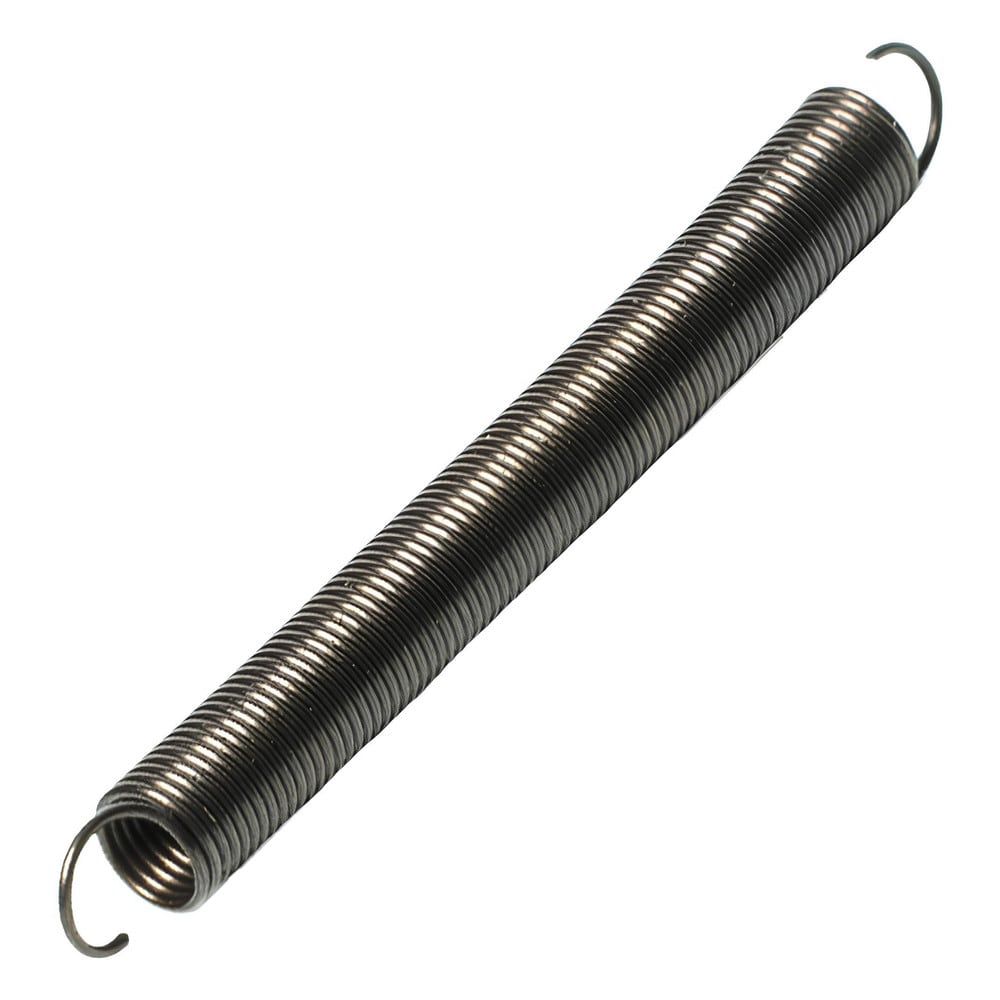

Extension Springs; End Type: Hook; Outside Diameter (mm): 22.0000; Spring Rate: 1.9000; Material: Music Wire; Overall Length (Decimal Inch): 6.0980
Item #: 02980571
Brand: Associated Spring Raymond
Model #: MHM2202000151M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 22.0000 |
| Spring Rate | 1.9000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 6.0980 |
| Initial Tension (N) | 12.8 |
| Maximum Extended Length (mm) | 419.00 |
| Free Length (mm) | 151.000 |
| Inside Hook Length (Fractional Inch) | 5-15/16 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 2.00 |
| UNSPSC Code | 31161907 |
