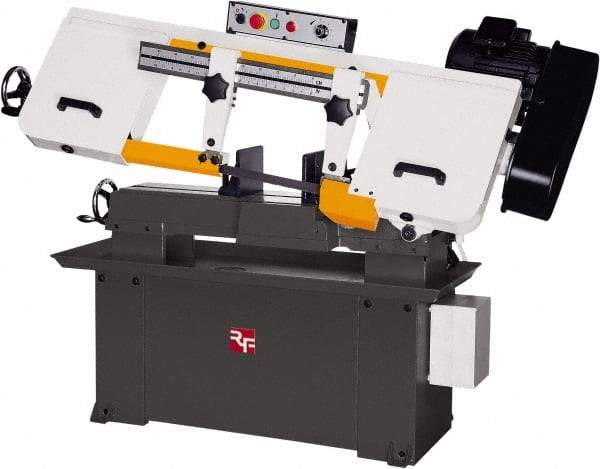

Rong Fu - 5 x 16" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 114, 196, 288 & 377 SFPM Blade Speed, 110 Volts, 45°, 1.5 hp, 1 Phase
Item #: 59833558
Brand: Rong Fu
Model #: RF-916S
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 5 x 16 |
| Maximum Capacity (Rounds) (Inch) | 9 |
| Phase | 1 |
| Voltage | 110 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (mm) | 203 x 241 (Rectangular); 229 (Round) |
| Angular Cuts at 45 Degrees (Inch) | 8 x 9-1/2 (Rectangular); 9 (Round) |
| Blade Width (mm) | 25.40 |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Speeds (SFPM) | 114 , 196 , 288 , 377 |
| Blade Length (Decimal Inch) | 114.5670 |
| Blade Length (mm) | 2910.00 |
| Blade Thickness (mm) | 0.89 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Carbide |
| Blade Speeds (SFPM) | 114 , 196 , 288 , 377 |
| Horsepower (HP) | 1.50 |
| Base Width (mm) | 548.64 |
| Base Width (Decimal Inch) | 21.6000 |
| Base Depth (mm) | 1579.88 |
| Base Depth (Decimal Inch) | 62.2000 |
