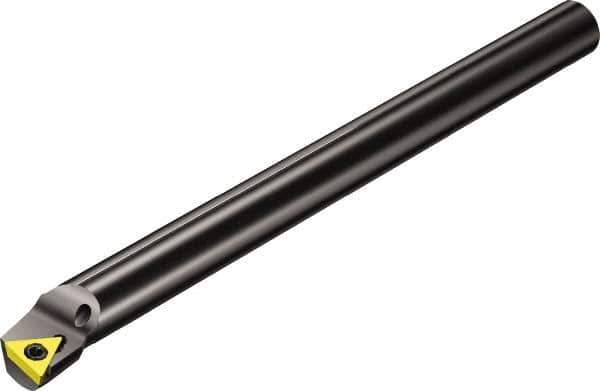

Sandvik Coromant - 8.7mm Min Bore Diam, 3-1/4" OAL, 1/4" Shank Diam, A-STFC Indexable Boring Bar - TCMT 1.21.20 Insert, Screw Clamping Holding Method
Item #: 59772392
Brand: Sandvik Coromant
Model #: 5721288
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | CoroTurn 107 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3425 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3425 |
| Minimum Bore Diameter (mm) | 8.70 |
| Minimum Bore Diameter (Decimal Inch) | 0.3425 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | TCMT 1.21.20 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Lead Angle | 0 |
| Neck Diameter (Inch) | 1/4 |
| Back of Bar to Cutting Edge (mm) | 82.55 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.2500 |
| Center to Cutting Edge (mm) | 4.37 |
| Center to Cutting Edge (Decimal Inch) | 0.1720 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Insert Inscribed Circle (mm) | 3.97 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCMT 1.21.20 |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
