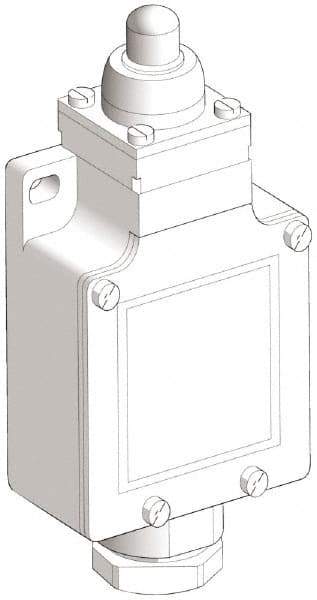

Telemecanique Sensors - SPDT, NC/NO, 240 VAC, 250 VDC, Screw Terminal, End Plunger Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 12, 13, 6P NEMA Rating, IP66 IPR Rating
Item #: 59760066
Brand: Telemecanique Sensors
Model #: XCKL110H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | End Plunger |
| Voltage | 240 VAC; 250 VDC |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Connection Type | 1/2 NPT |
| Actuator Location | Top |
| Material | Metal |
| Amperage | 10 |
| NEMA Rating | 1; 2; 4; 6; 12; 13; 6P |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 52 |
| Overall Width (Decimal Inch) | 2.0500 |
| Overall Depth (mm) | 30 |
| Overall Depth (Decimal Inch) | 1.1800 |
| Standards Met | CSA; CSA C22.2 No. 14; EN/IEC 60204-1; EN/IEC 60947-5-1; RoHS Compliant; UL; UL 508 |
