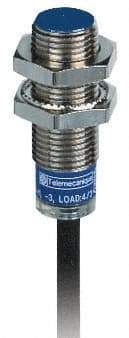

Telemecanique Sensors - PNP, NC, 2mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 3 Wires, IP68, IP69K, 12 to 24 VDC, M12x1 Thread, 1.38 Inch Long x 0.47 Inch Wide
Item #: 59758573
Brand: Telemecanique Sensors
Model #: XS512B1PBL2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | Cable |
| Number of Wires | 3 |
| Detection Distance (mm) | 2.00 |
| Detection Distance (Decimal Inch) | 0.0800 |
| Sensor Head Size | M12 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 12 |
| Overall Width/Diameter (Decimal Inch) | 0.4700 |
| Ingress Protection Rating | IP68; IP69K |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 5000 |
| Thread Size | M12x1 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 35 |
| Overall Length (Decimal Inch) | 1.3800 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed |
